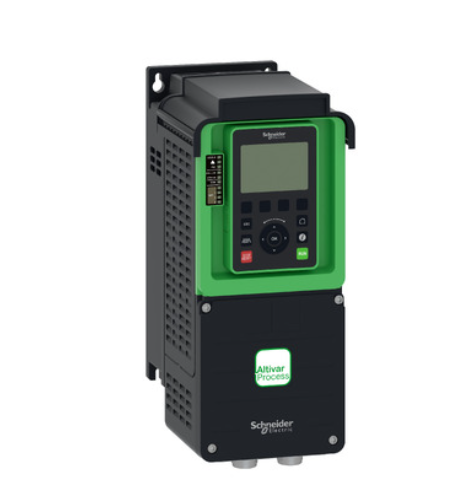

Range of product: Altivar Process ATV600
Product or component type: Variable speed drive
Product specic application: Process and utilities
Device short name: ATV630
Variant: Standard version
Product destination:
Asynchronous motors
Synchronous motors
EMC filter:
Integrated with 50 m conforming to IEC 61800-3 category C2
Integrated with 150 m conforming to IEC 61800-3 category C3
IP degree of protection:
IP21 conforming to IEC 61800-5-1
IP21 conforming to IEC 60529
[Us] rated supply voltage: 380...480 V
Degree of protection: UL type 1 conforming to UL 508C
type of cooling: Forced convection
Supply frequency: 50...60 Hz - 5...5 %
[Us] rated supply voltage: 380...480 V - 15...10 %
Motor power kW:
5.5 kW (normal duty)
4 kW (heavy duty)
Motor power hp:
7.5 hp normal duty
5 hp heavy duty
Line current:
10.4 A at 380 V (normal duty)
9.1 A at 480 V (normal duty)
8 A at 380 V (heavy duty)
7.2 A at 480 V (heavy duty)
Prospective line Isc: 50 kA
Apparent power:
7.6 kVA at 480 V (normal duty)
6 kVA at 480 V (heavy duty)
Continuous output current:
12.7 A at 4 kHz for normal duty
9.3 A at 4 kHz for heavy duty
Asynchronous motor control profile:
Constant torque standard
Variable torque standard
Optimized torque mode
Synchronous motor control profile:
Permanent magnet motor
Synchronous reluctance motor
Speed drive output frequency: 0.1…500 Hz
Nominal switching frequency: 4 kHz
Switching frequency:
2...12 kHz adjustable
4...12 kHz with derating factor
