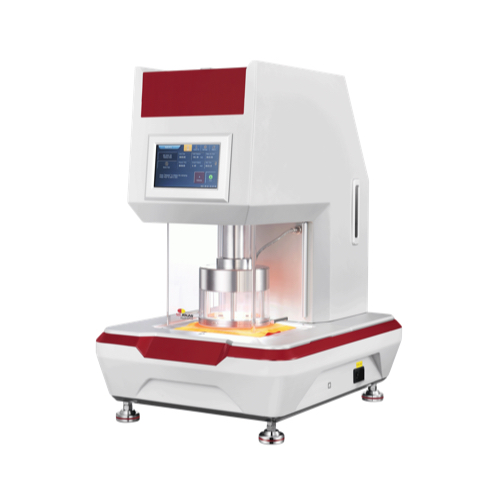

SDL Atlas M018 HydroPro-Hydrostatic Head Tester (5 bar; 100 cm²)

Application: To determine the waterproof properties of fabrics such as canvas, coated fabrics, hood fabric, tarpaulin, rain-proof fabrics and geotextiles

Fast Test: Rapidly determines a failure point and allows other tasks during 80% of the standard test time

Alarm: Indicates when fail pressure is close

Video Recording: Real-time pressure recording for review after testing via computer software

Image Capture: Real-time pressure capture for review after testing via computer software

Testing Pressure: Up to 5 bar

Sample Clamping: Pneumatic, to avoid slippage and leakage

Water Filling: Automatic

Water Level Detection: Automatic

Controller: Full color touch screen

Test Routines: Preloaded routines for popular standards and custom programs

Connectivity: WiFi

Remote Access: RemoteAccess App, alerts the operator when the test is 80% complete

Sample Area Lighting: LED

Safety Shield: Clear

Test Head: 100 cm²

Analysis Software: Included

Weight: 110 kg/243 lbs

Dimensions: 510 mm (w) x 650 mm (d) x 760 mm (h) / 20 in (w) x 23.8 in (d) x 29.9 in (h)
