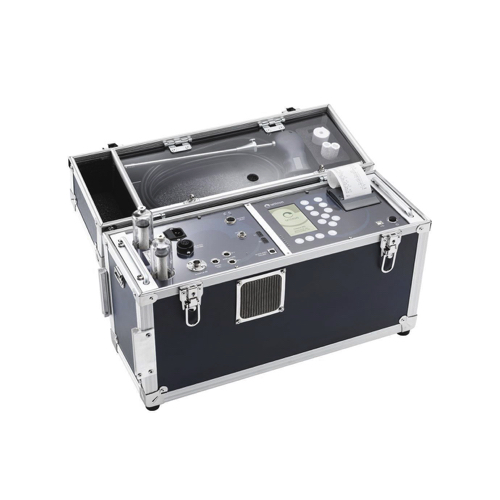

Seitron S9000-2-IR3 バイオガスアナライザー (25% O2, 8000ppm CO, 5000ppm NO/NOx)

Gas Measurement Sensors: Up to 9 (configurable among electrochemical, NDIR, and Pellistor+NDIR Gases: CO, CO2, CxHy)

Infrared Bench: 3 gases NDIR bench (CO, CO2, CxHy)

Gas Measurement Ranges:

O2: 0–25%

CO: 0–8000ppm

NO/NOx: 0–5000ppm

CO Dilution Auto-Range: Up to 10%

Calculations: Efficiency, Loss, Excess Air, & CO2

Probe: 12” (300mm), 1470°F (800°C) max, with 10’ (3m) Dual Hose

Battery: Rechargeable Li-ion Pack with internal protection circuit, charges from 0% to 90% in 8 hours

Operating Time: 10 hours (except printer and Peltier Chiller)

Display: Large Full-Color Graphic Screen

Built-In Printer: Non-Fading Paper

Data Storage: Internal Memory (16,000 Tests)

Communication: Wireless Bluetooth

Cooler sample treatment

Drying system: Rapid water condensation using cyclone system

Type: Peltier cell

Set point temperature cooler: +41°F (+5°C)

Max. temp. deviation from set point: +50°F (+10°C)

Condensate emptying pump: Peristaltic hose 38 ml/min

Peristaltic duty cycle pump: 30s On .. 30s Off

Warm-up time: ~15 .. 20 minutes

Operating temperature: +23°F (-5°C) .. +113°F (+45°C)

Fuel Types: 12 preprogrammed + 16 user-programmable

Power supply: 100 .. 260V~, or Li-ion battery pack with internal protection circuit, rechargeable.
