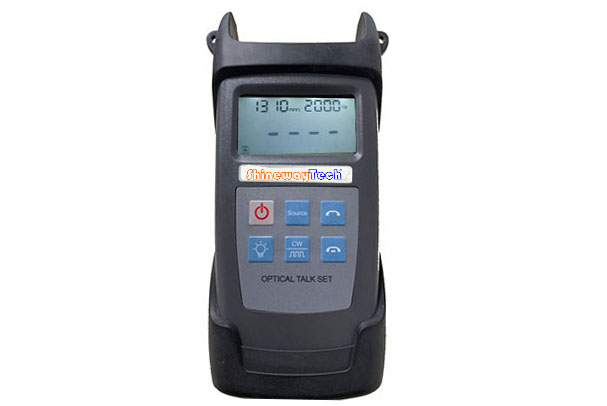

ShinewayTech OTS-20 Multifunctional Optical Talk Set (1310/1550nm)

Wavelength(nm): 1310/1550

Emitter Type: FP-LD

Transmission Distance(KM): ≥90

Dynamic Range(dB): ≥ 28

Output Power(dB): -5~-7

 Modulation(Hz): CW,270,1K,2K

Output Stability (dB,30min,20 °C ): ≤±0.05

Power Supply: 3 pcs 1.5V Alkaline Batteries/8.4V Power Supply Adaptor

Battery Operating Time: 10 hours

Optical Connector: FC/PC

Operating Temperature(°C): -10 ~ +60

Storage Temperature(°C): -25 ~ +70

Dimension(mm): 198X102X50

Weight(g): 310

   * Specifications subject to change without notice

Ordering Information

Standard Package：

Instrument, User manual, Warranty card, AC Adapter, Earphone.
