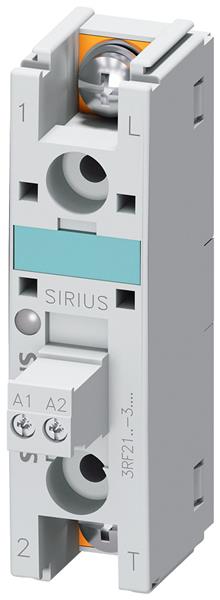

SIEMENS 3RF21503AA26 ゼロポイントスイッチングSSリレー、22.5MM、50A、600V、230VAC、リングZP

Width: 48 mm

Height: 58 mm

Length: 45 mm

IP Rating: IP20

Mounting Style: Panel Mount

Termination Style: Screw

Relay Contact Form: 1 Form A (SPST-NO)

Load Current Rating: 50 A

Load Voltage Rating: 48 VAC to 600 VAC

Control Voltage Range: 110 VAC to 230 VAC

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 25 C
