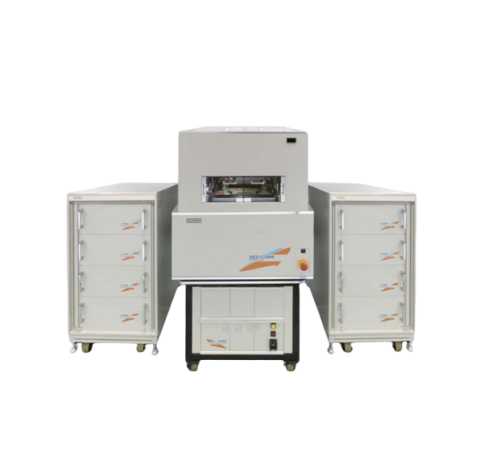

SPIROX HED-G5000 自動ESDテスター (10MHz, 0.5 ~ 5V)

Design Base: Mechanical

Matrix: No Relay System

Test Model: HBM, MM & Latch Up Customize Available

Test Level

HBM: 10V to 8kV step 5V

MM: 10V to 4kV step 5V

Latch Up: 100V/1A, 35V/1A

Latch Up: JESD78 with Vector Option

Vector: 10MHz max, 0.5 ~ 5V, 256k depth

Pin Count: Max 2048 Customize Available

DUT V/I Supplies: Max 7: 100V/1A, 35V/1A, 1A/100V

Dimensions: (W)200cm*(D)105cm*(H)150cm Depend on System

Weight: 500kg

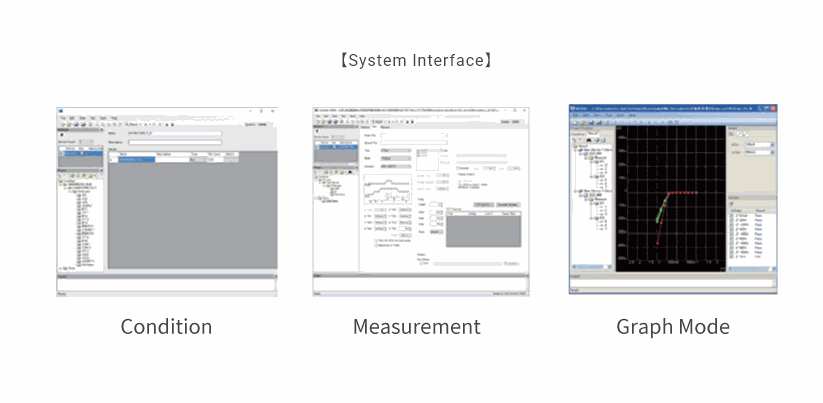

Operation System: Windows

AC Voltage: 100-240V/20A

Function description
