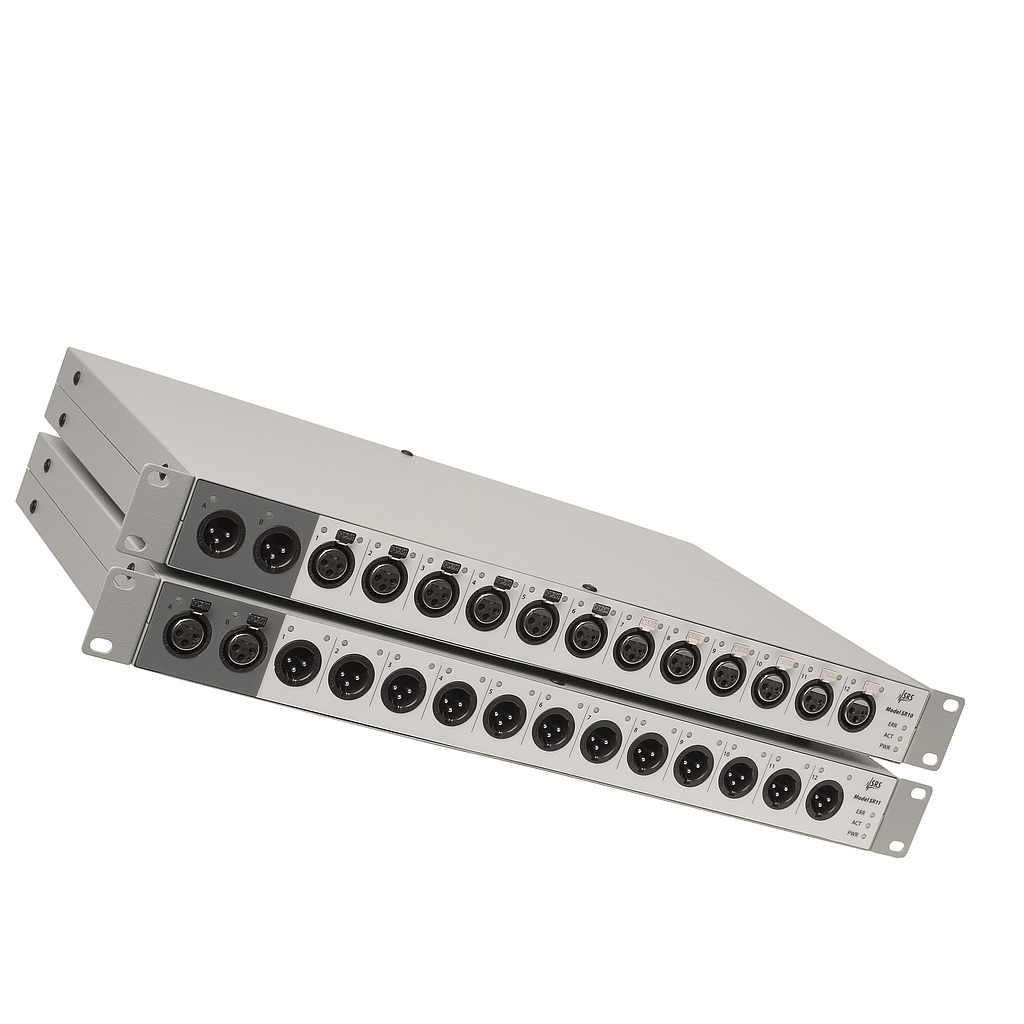

Stanford SR11 オーディオシグナルアナライザ用スイッチ (-155 dB~ -137 dB)

Maximum voltage: 250 Vrms, 220 Vp

Maximum power: 5 W or 200 mA

Crosstalk (into 600 Ω):

   SR10 & SR11 (balanced): -155 dB at 20 kHz; -137 dB at 100 kHz

   SR12 (unbalanced): -138 dB at 20 kHz; -124 dB at 100 kHz

Series resistance: <300 mΩ (typ.)

Computer interfaces: GPIB, RS-232, Ethernet. Ethernet control is over a simple socket interface or web page. RS-232 interface can be cascaded with up to 16 switch boxes. Integrated with SR1 to control up to 16 switch boxes.

Power: <10 W, 90 VAC to 264 VAC, 47 Hz to 63 Hz

Dimensions: 17"×1.75"× 11.5" (WHD)

Weight: 5 lbs.
