SUTO S530 Ultrasonic Compressed Air Leak Detector (640...660nm, 0.4…0.5mW)

MEASUREMENT

Flow

Sensor: Ultrasonic leak detection sensor

Laser:

640 ... 660 nm wavelength

0.4 ... 0.5 mW output power

Supply: 5.0 Megapixel

Power supply: Internal NiMH rechargeable battery

Operating time: 6h

Headset

Headset: Noise isolated head set

Headset connection: 3.5 mm stereo phone jack

GENERAL DATA

Display

Integrated: 3 colour black-mask LCD, 10 level

Material

Housing: PC + ABS

Miscellaneous

Protection class: IP30

Weight: 2.5 kg for the full set

Operating conditions

Medium: Compressed Air, refrigerants and any compressed gases

Ambient temperature: 0 ... +40 °C

Ambient humidity: < 90 % rH

Storage temperature: -10 ... +50 °C

Transport temperature: -20 ... +50 °C

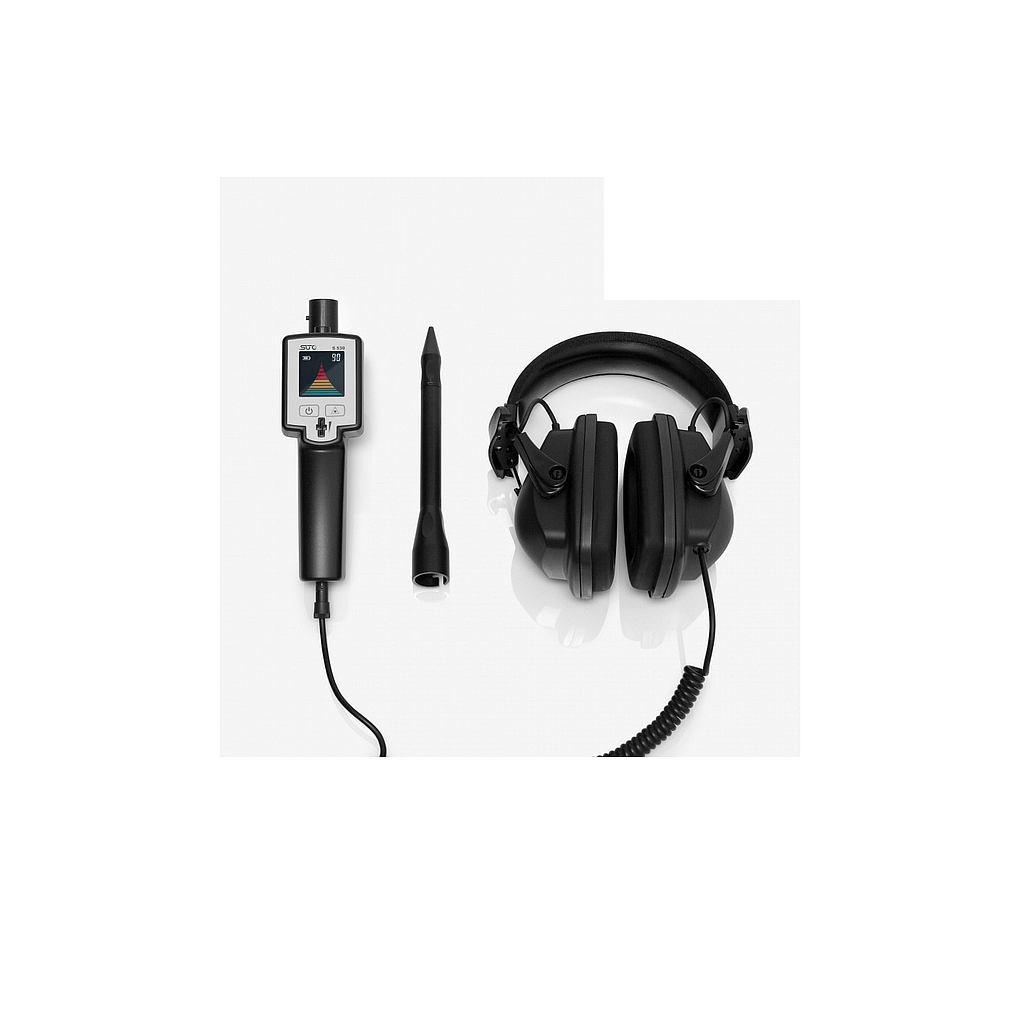

Including:

P560 0102: S530 Ultrasonic Leak Detector

S605 0001: Sensor unit

A554 0119: Noise isolated headset

A530 0101: Focus tube and focus tip

A554 0113: Battery charger

A554 0101: Transport case S530

Datasheet
