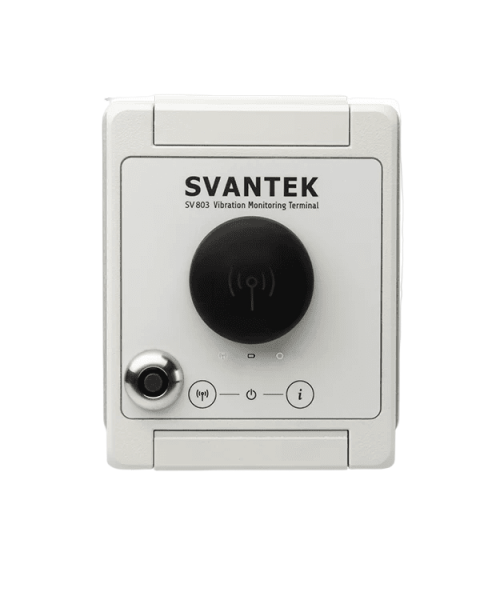

Svantek SV 803 Wireless Vibration Monitor (Class 1; 0.8–500 Hz; 1 um/s–141 mm/s)

Standards: DIN 45669-1:2020-06; ISO 4866:2010, Class 1; IEC 61260:2014, Class 1

Meter Mode: PPV; DF; RMS; RRMS; VDV; MAX; Peak; Peak-Peak; PPV Vector; aw; awv; OVL

Analyser: 1/3 octave real-time analysis or FFT analysis; time-domain signal recording to WAV format

Filters: DIN 80; DIN 315; VEL1; KB; HP

RMS Detector: Digital true RMS with Peak detection; resolution 0.01 dB

Detector Time Constants: Fast 125 ms in accordance with DIN 4150-2

Vibration Sensor: Tri-axial geophone

Dynamic Range: 1 um/s RMS ÷ 141 mm/s Peak

Measurement Range: 3 um/s RMS ÷ 100 mm/s RMS (141 mm/s Peak)

Frequency Range: 0.8 Hz ÷ 500 Hz (-3 dB)

Remote Communication: 4G modem; Bluetooth; GPS

Power Supply:

 Internal battery / SB 803 Li-Ion battery pack; 7.2 V; 30.15 Ah; 217 Wh (removable)

 DC power supply / SB 274 charger (waterproof)

 External battery pack: Li-Ion (optional)

 Solar panel (optional)

Operating Time on Battery:

 Up to 30 days with continuous modem transmission

 Up to 180 days in power saving mode

 Unlimited with SB 803 and solar panel in power saving mode

Environmental Conditions – Temperature: −20 °C ÷ +50 °C

Dimensions: 163 × 128 × 115 mm (without accessories)

Weight: Approximately 3.0 kg (including battery); approximately 3.5 kg (including battery and mounting platform)
