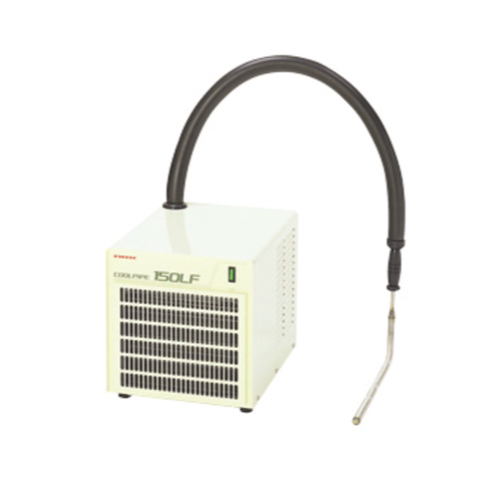

Temperature range (*1): -15℃ to +30℃
Cooling capacity: Approx. 290 W (*2)
Condenser (Air-cooled) output: 150W
Cooling pipe structure: Stainless steel Flexible tube
Pipe Immersing part dim.: φ16 mm × 500 mm
Pipe Thermal insulation length: 1 m
Unit Dimensions (W×D×H)/weight: 310 × 410 × 320 mm, Approx. 28 kg
Power Supply: AC100V/4A (Need a step-down transformer)
Catalog
(*1)Not equipped with a Temperature control function. Use together with Thermominder, etc. if necessary.
The Min. temp. may not be reached depending on the ambient temperature.
(*2)The value under the conditions of ambient temp. 25℃ and liquid temp. 10℃ at 50 Hz.
●When using a temperature controller, the temp controller that controls the heater is recommended to protect the refrigerator.
●Use a heater with capacity larger than cooling capacity of this product when using together Thermominder, etc.
●Use an antifreeze that does not corrode Stainless steel, Chemically and Thermally stable and a viscosity of below 30 mm2/s (specific gravity 1.0) in within operational temp. range
●Do not bend the Cooling pipe too much (Min bending radius is 50 mm for fixed bending). It may crack and cause gas leakage if bent forcibly. Do not immerse the heat insulation part of the Cooling pipe (the part where the black insulation material is wound) in liquid.
●Cannot be used with Seawater.
