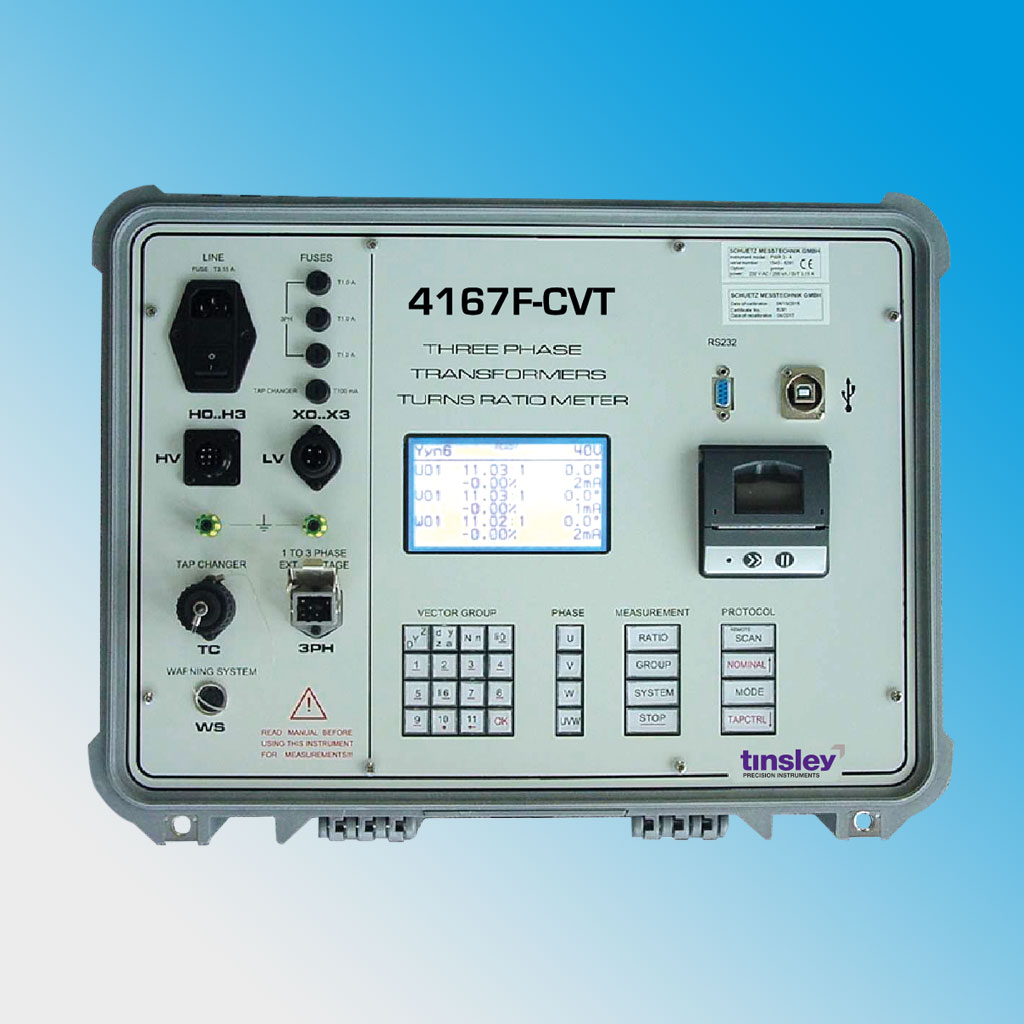

Tinsley 4167F-CTV Portable Transformer Ratiometer

RATIO MEASUREMENT

Total Range:  0.75 – 20,000 : 1

Max. errors (0.75 .. 2,500) : ± 0.10 % ± 1d @ 8 V .. 230 V

Max. errors (2,501 .. 5,000) : ± 0.10 % ± 1d @ 40 V .. 230 V;  ± 0.15 % ± 1d @ 8 V

Max. errors (5,001 .. 10,000) : ± 0.10 % ± 1d @ 80 V .. 230 V;  ± 0.20 % ± 1d @ 8 V .. 40 V

Max. errors (10,001 .. 15,000) : ± 0.15 % ± 1d @ 80 V .. 230 V; ± 0.30 % ± 1d @ 8 V .. 40 V

Max. errors (15,001 .. 20,000):  ± 0.30 % ± 2d @ 160 V .. 230 V;  ± 1.00 % ± 2d @ 40 V .. 80 V

Measuring voltage: 8 V, 40 V, 80 V, 160 V , 230 V or by external source (8V .. 240 V)

Measuring frequency : 45 Hz – 65 Hz

Range selection:  full automatic

PHASE ANGLE MEASUREMENT

Range (one phase) : - 9.9 ° to + 9.9 °

Range (three phase) : - 179.9 ° to + 180 °

Max. error : ± 0.1 ° ± 2 digit

Mag.current measurement : 1 mA – 2000 mA ± 1 mA

MULTIPLEXER

Connections HV : 1U, 1V, 1W, 1N / H0,1,2,3 Amphenol

Connections LV:  2U, 2V, 2W, 2N / X0,1,2,3 Amphenol

Connections ext. excitation : 8 V – 240 V AC, STASEI 5

Error detection : Contact- and stability errors displays: HV / LV too low; bad line stability

Set point input : using front panel, via RS232 or chipcard

Deviances : shown on display, via RS232

Start of measurement : using front panel, via RS232 or IEEE - 488

Display : 256 x 128 pixel LC display, backlight

Result format : vectorgroup, actual phase, actual tapposition, ratio and deviation, phase angle and deviation, exiting current, deviation ref. to setpoints

Measuring Time:  5 ... 20 s depending on line noise/distortion

Measurement Storage:  ca. 2000 sets of data on internal memory

Data Transfer:  direct or later on with 4167F-XFER - Program

Correct Connections : tested before each measurement

Ports : USB, RS232C (full device control) printer (parallel, ANSI standard, optional)

Temperature Operating::  -10° .. 50°C

Storage: : -20° ... 65°C

Humidity : 0 ... 90% (Storage 95%) non condensing

EMC, Safety, Vibration : CE , IEC61010-1 , ASTM D 999.75

Dimensions, Weight : 490 x 400 x 190 mm (WxDxH, mobile ABS rugged case), approx. 10 kg without cables

Power Supply : 230VAC +10% -15% (196 - 250VAC) / 48..62Hz
