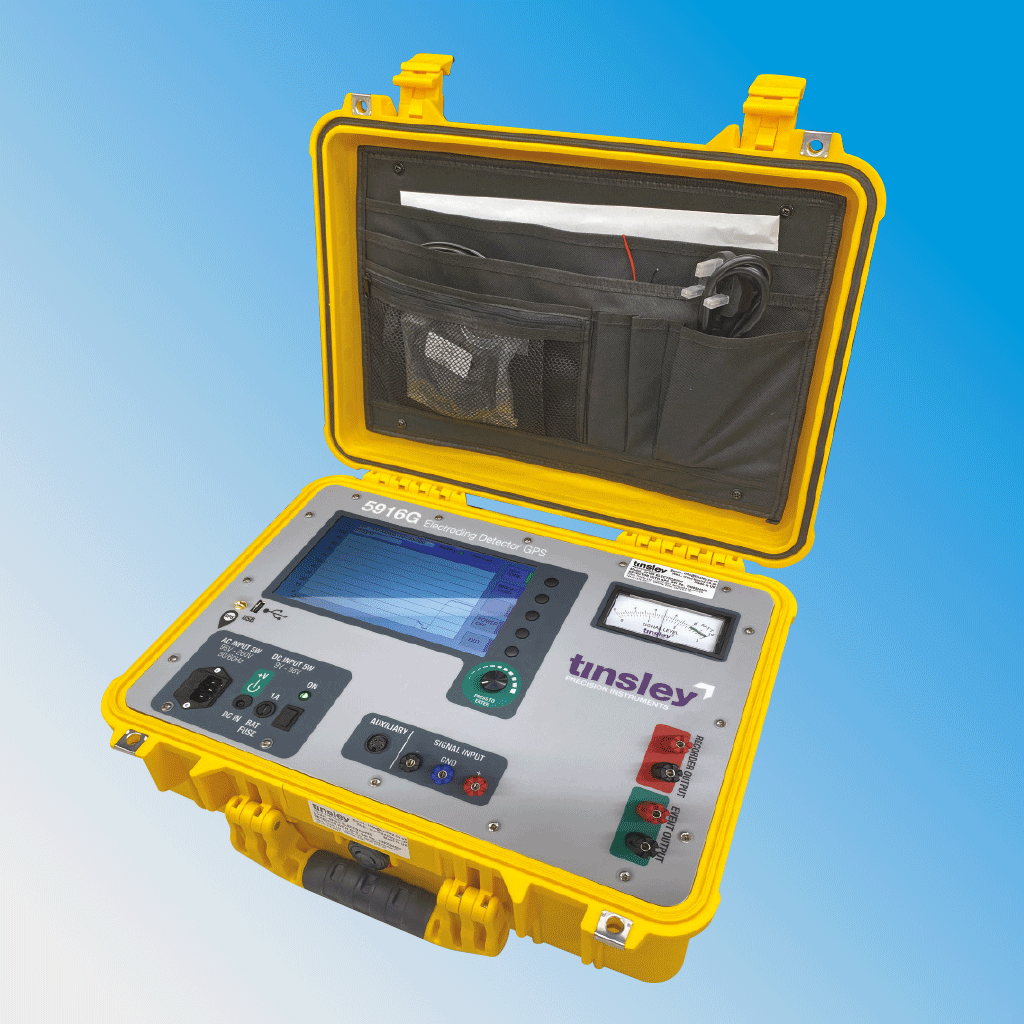

Tinsley 5916G Submarine Cable Electroding Detector with GPS (4Hz ~ 40Hz)

Frequency Range 4Hz to 40Hz in increments of 0.1Hz

Detector Bandwidth 0.5Hz

Sensitivity Electrostatic input: 1μV RMS for full scale deflection Auxiliary input: 0μV RMS for full scale deflection

Input Impedance Electrostatic Input: Balanced low impedance Auxiliary input: 10kΩ

Auxiliary Input Connector 7 way DIN socket

Electrostatic Input Connector 4mm binding post terminals

Power Built-in rechargeable batteries - typically 5 hours continuous use. External Extended battery connection

Mains Supply Single phase 115V AC to 240V AC

Analogue Display Analogue signal strength meter with battery and signal test

GPS Location Detection via Inbuilt GPS 4M accuracy

LCD Colour LCD with current and historical data, Day/ Night mode

Event marker Stored digitally storing Lon,Lat, and signal strength, plus comment

Detection Range Electrostatic Input: Typically 180 metres but depths of 300 metres are possible. Limited by external factors such as: signal to noise ratio, attenuation of the signal in the cable and lateral distance at which the ship is operating away from the cable Magnetic Detector Inpu: Typically 20 metres but may be limited by external factors such as signal to noise ratio and attenuation of signal in the cable

Case Type

Dimensions 470mm x 360mm x 175mm

Weight Approximately 18Kg
