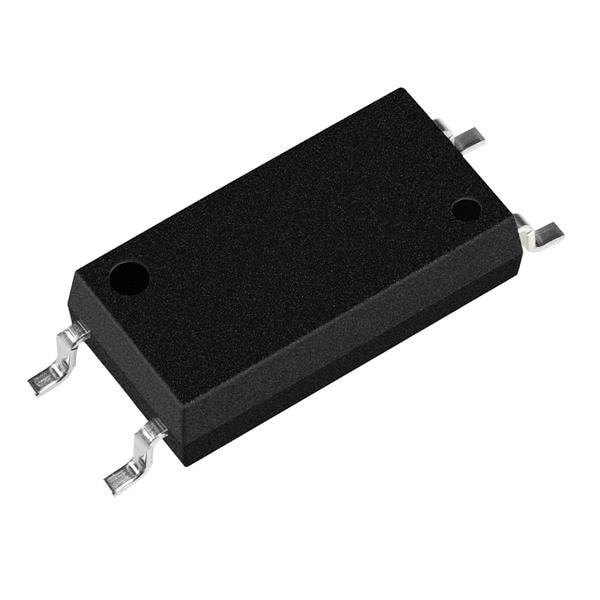

Toshiba TLP383(GR-TPL,E トランジスタ出力フォトカプラ、フォトトランジスタ出力

Width: 3.84 mm

Height: 2.1 mm

Length: 7.5 mm

Fall Time: 3 us

Rise Time: 2 us

Output Type: Phototransistor

Unit Weight: 128 mg

Configuration: 1 Channel

Mounting Style: SMD/SMT

Isolation Voltage: 5000 Vrms

Number of Channels: 1 Channel

If - Forward Current: 50 mA

Vf - Forward Voltage: 1.4 V

Vr - Reverse Voltage: 5 V

Current Transfer Ratio: 100 %

Pd - Power Dissipation: 100 mW

Maximum Collector Current: 50 mA

Current Transfer Ratio - Max: 300 %

Current Transfer Ratio - Min: 100 %

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C

Maximum Collector Emitter Voltage: 80 V

Collector-Emitter Breakdown Voltage: 80 V

Maximum Collector Emitter Saturation Voltage: 300 mV
