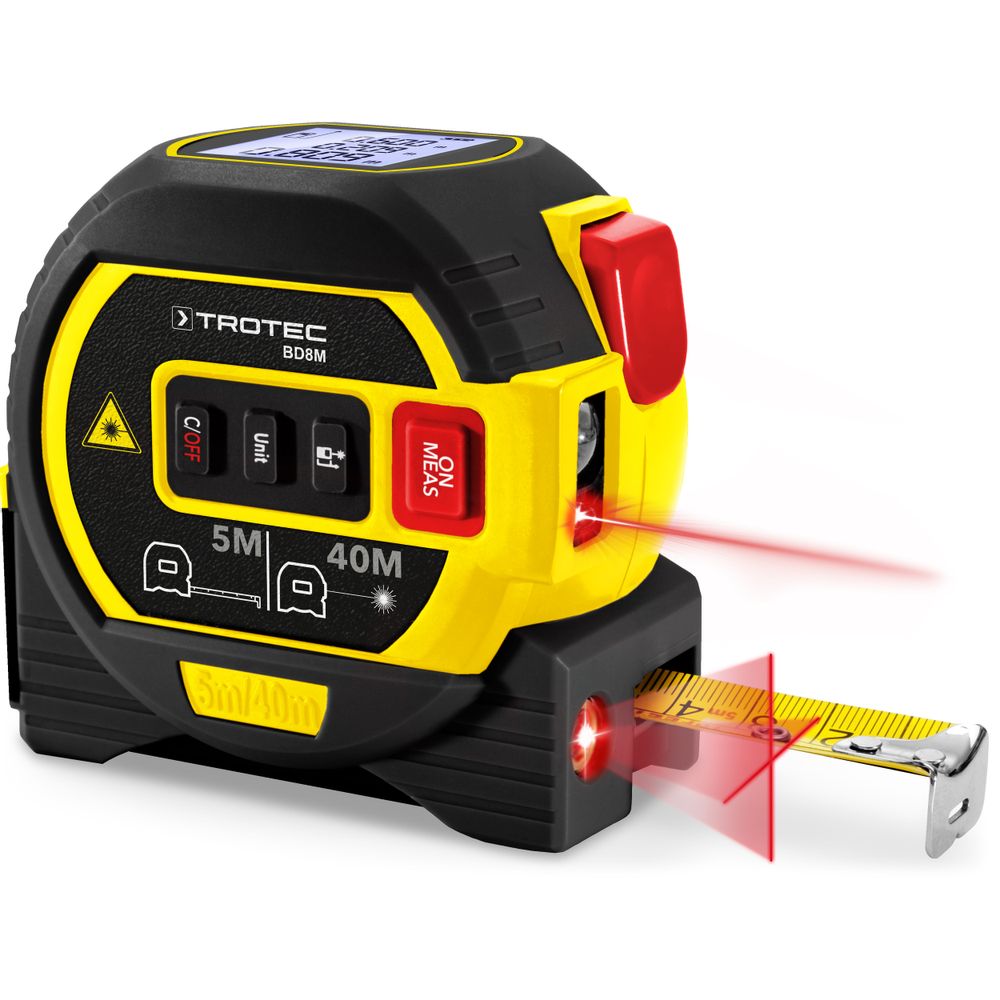

Trotec BD8M Laser distance meter (0.05~40m; ± 2mm)

Distance measurement:

Min. measuring range [m]: 0.05

Max. measuring range [m]: 40

Resolution: 1 mm

Typical measuring tolerance: ± 2 mm

Laser:

Ø of the laser point at distance 10 [mm]: 6

Ø of the laser point at distance 20 [mm]: 11

Ø of the laser point at distance 30 [mm]: 18

class: 2

output < [mW]: 1

Wavelength [nm]: 650 nm

Memory organisation:

Recall of previous measurements: 20

Device control:

Push buttons: ✓

Membrane keyboard: -

Touch: -

Housing design:  Plastics: ✓

Power supply:  Internal (battery): 2 x 1.5 V, AAA

Ambient conditions:

Operation - min. temperature [°C]: 0

Operation - max. temperature [°C]: 40

Storage - min. temperature [°C]: -10

Storage - max. temperature [°C]: 60

Dimensions:

Length (packaging excluded) [mm]: 82

Width (packaging excluded) [mm]: 56

Height (packaging excluded) [mm]: 85

Weight:  (packaging excluded) [kg]: 0.29
