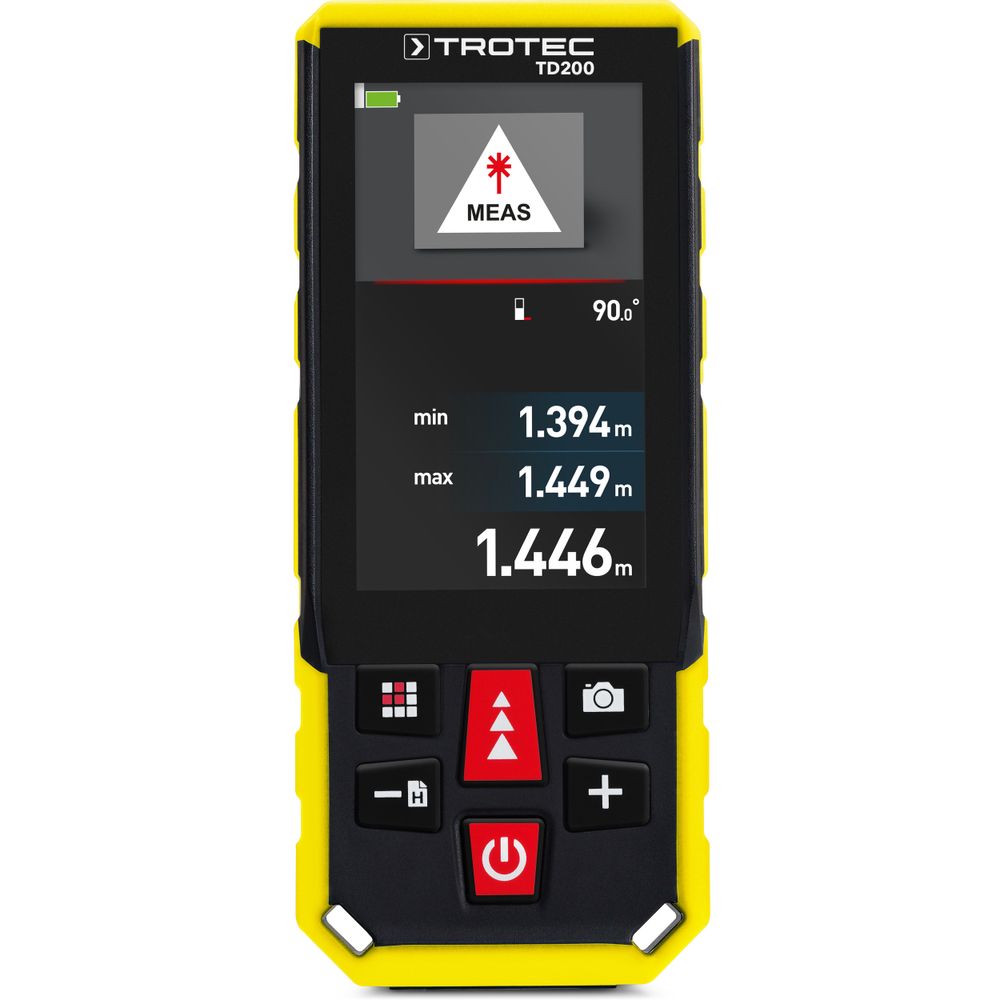

Trotec TD2000 Laser range finder (0.2~200m; ± 2 mm)

Distance measurement:

Min. measuring range [m]: 0.2

Max. measuring range [m]: 200

Resolution: 0.1 mm

Typical measuring tolerance: +/-2 mm

Inclination measurement:

Measuring range | Inclination measurement: 360°

Messgenauigkeit typ.: ±0,3°

Laser:

Ø of the laser point at distance 10 m [mm]: 6

Ø of the laser point at distance 20 m [mm]: 11

Ø of the laser point at distance 30 m [mm]: 18

class: 2

output < [mW]: 1

Wavelength [nm]: 630 - 670 nm

Memory organisation:

Saving of up to 1.000 measurements: ✓

Saving of up to 100 screenshots: ✓

Display:

3" HD colour display: ✓

hintergrundbeleuchtet: -

Monochrome: -

Device control:

Push buttons: ✓

Interfaces:

Micro USB: ✓

Bluetooth: ✓

Housing design: Plastics: ✓

Type of protection:  IP65: ✓

Power supply:  Internal (battery): 3 x 1.2V AAA Ni-MH

Ambient conditions:

Operation - min. temperature [°C]: 0

Operation - max. temperature [°C]: 40

Storage - min. temperature [°C]: -10

Storage - max. temperature [°C]: 60

Dimensions:

Length (packaging excluded) [mm]: 28

Width (packaging excluded) [mm]: 54

Height (packaging excluded) [mm]: 130

Weight:  (packaging excluded) [kg]: 0.19
