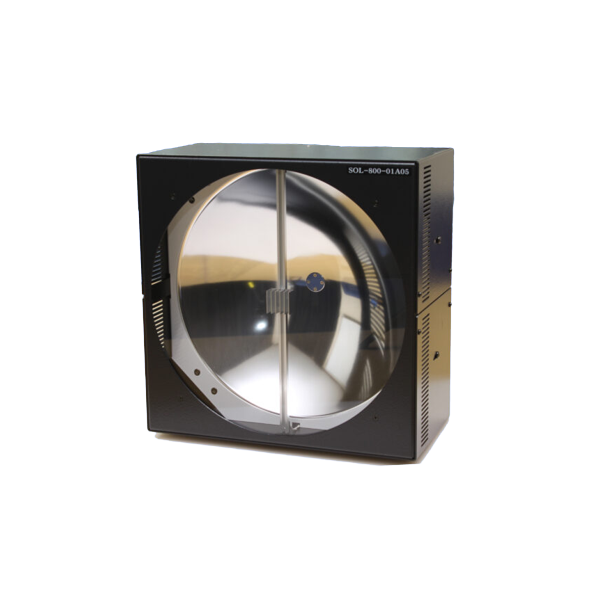

Tsubosaka SOL-800-01A05 スポット照明 (50,000 lx)

Correlated color temperature [K]: 5500+/-500

Light source: LED

Lighting method: DC

Illuminance [lx]

Common use 45,000

Maximum 50,000 (0.5m ahead)

Illuminance plane (WxH) [mm]: φ30 ahead from 0.5m

Function: Adjusting illuminance function

Display / Operation: Operation unit of the main part

Power-supply voltage: AC100-240V 50/60Hz

Power consumption [VA]: Less than 180

Operating environment

Temperature: 10-40[℃]

Humidity: less than 80[%] without dew condensation

Dimensions (WxHxD) [mm]: 320x320x160 without protrusions

Weight [kg]: 3.5

Datasheet

Using high color rendering LED (Ra=97)

Suitable for 45,000lx spot illumination designated by ISO16505, UN-R46

Suitable for the direct sunlight evaluation
