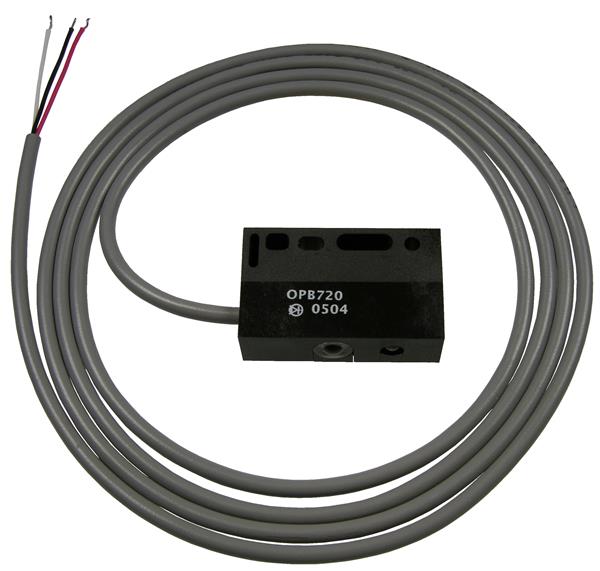

TT Electronics / Optek Technology OPB720B-30VZ 光スイッチ、反射型、フォトIC出力反射センサー

Width: 17.15 mm

Height: 8.38 mm

Length: 27.94 mm

Output Type: Open Collector, Buffer

Unit Weight: 14.582 g

Mounting Style: Wire Leads

Output Voltage: 30 V

Sensing Method: Reflective

Sensing Distance: 1 mm to 762 mm

Number of Channels: 1 Channel

Pd - Power Dissipation: 300 mW

Low Level Output Voltage: 800 mV

Operating Supply Voltage: 4 V to 7 V

High Level Output Voltage: 3.5 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
