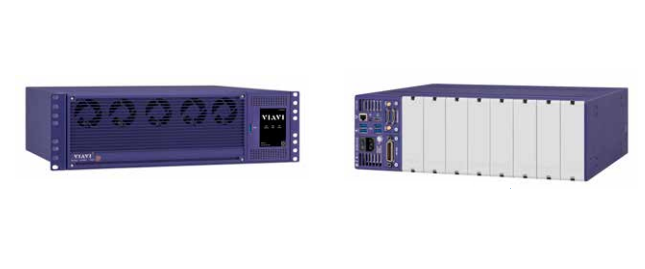

Viavi MAP-380AX-B LightTest Rackmount Mainframe (8 Slot 3U 19-in)

Mainframe Chassis:

Capacity (Single-width cassettes): 8 cassette

Rackmount Kit: Optional

Benchtop Kit: Optional

Controller (MAP-300CLD-B):

Operating System: Linux

Local Touchscreen: 3.5-inch touchscreen for network/system status controls, 320×240 resolution

Power Supply: 100–240 V AC, 50/60 Hz, auto-switching

Power Consumption: 450 VA MAX

Field Replaceable: Yes

Bays for Plug-in Modules: 2

Native Ports/Interfaces:

USB 3.0 host: 1 front

USB 3.0 (mouse, keyboard, etc.): 4 rear

Ethernet 10/100/1000BASE-T: 1 rear

Monitor port: 1 rear

Optical Plug-in Modules: GPIB, USB/LAN Expansion, Trigger

Automation:

Driver Type: IVI compliant

Standard/Protocol: LXI, VXI-11, SCPI

Driver Compatibility: LabVIEW™, LabWindows™, Microsoft® Visual C++, Microsoft® Visual Basic®

Accessibility: Multiuser sharing support

Web GUI Compatibility: Google Chrome, Mozilla Firefox or Microsoft Edge

Laser Interlock: See MAP Series Safety and Compliance Reference Guide 22113629-325

Local Interlock : Software controlled

Remote Interlock: 2-pin terminal block at rear controller

Mechanical:

Dimensions of rackmount (H × W × D): 48.26 × 13.26 × 38.63 cm (19 × 5.22 × 15.21 in)

Dimensions of benchtop (H × W × D): 49.49 × 14.94 × 42.7 cm (19.5 × 5.9 × 16.81 in)

Weight (Mainframe): 12.6 kg (27.7 lb)

Shipping Weight: 18 kg (39.6 lb)

Environment:

Operating Temperature: 0 to 50 °C

Storage Temperature: –30 to 60 °C

Relative Humidity: 5 % to 85 % non-condensing

Optional 15.6-inch Touchscreen (MAP-300AKD) Specifications:

Parameter Specification:

Dimensions : 16-in x 9-in

Resolution : 1080p (1920x1080)

Dock to Benchtop Mainframe:

 MAP-330 : Supported

 MAP-380 : Not Supported

Power/Interface to Mainframe:

 MAP-330 : USB cable or docking connector

 MAP-380:  USB cable

Weight : 2.7 kg (5.95 lb)
