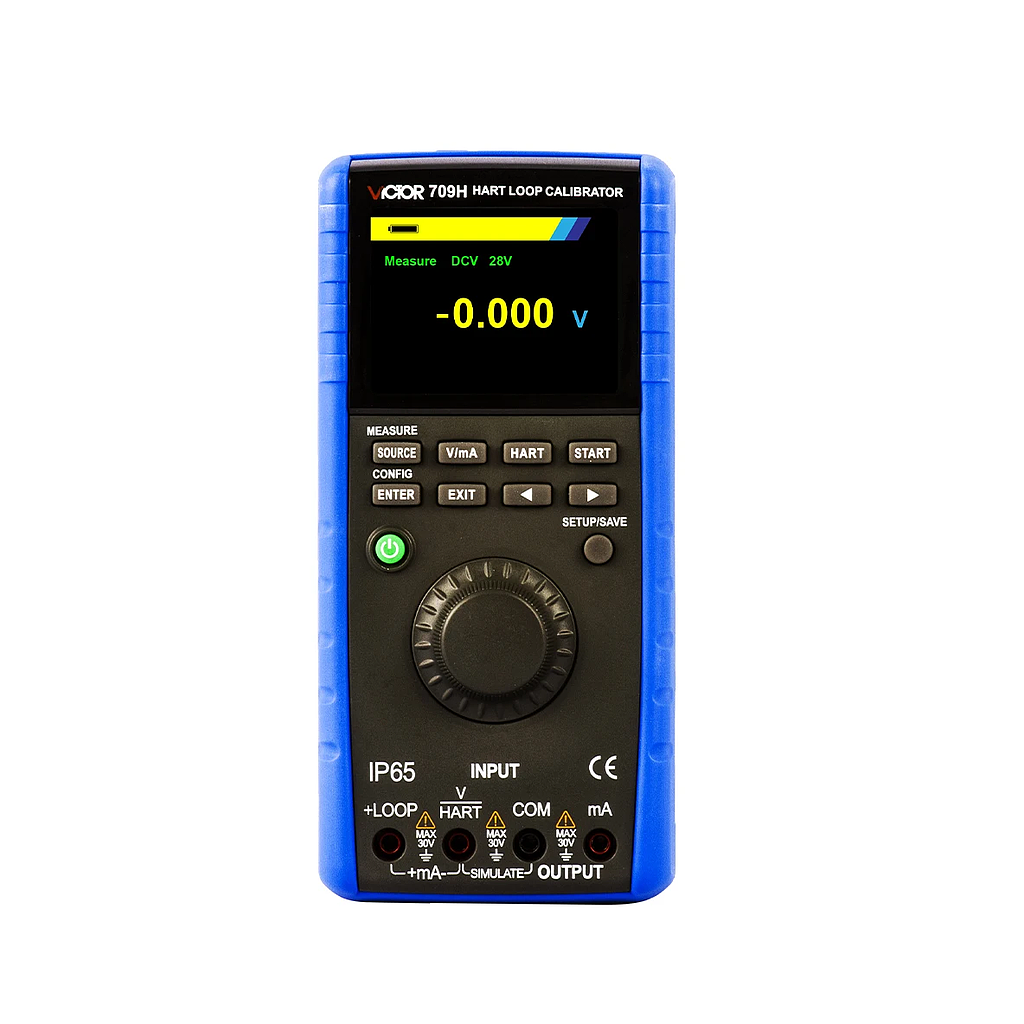

VICTOR 709H HART Communication Loop Calibrator (-2.000～28.000VDC, -4.000～33.000mADC)

Source

DC current (DCmA)

Range: 0.000～22.000mA

Accurac ±(% of the set value +% of range): 0.01+0.015%

Resolution: 1uA

Analog transmitter (SIMULATE)

Range: 0.000～22.000mA

Accuracy

±(% of the set value +% of range): 0.01+0.015%

Resolution: 1uA

External power supply: 5 ～ 28V

Measurement

DC voltage (DCV):

Range: -2.000～28.000V

Accuracy±( % of Reading+ % of Range): 0.01%+0.01%

Resolution: 1mV

DC current(DCmA)

Range: -4.000～33.000mA

Accuracy ±( % of Reading+ % of Range): 0.01%+0.01%

Resolution: 1uA

Loop power supply(LOOP)

Range: 24V

The maximum current: 22mA

Driving ability:

No HART resistance of 1KΩ.

HART resistance is 750 Ω.

Power supply : four 1.5V alkaline batteries(LR6)

Battery life : about 360mA /5V under the condition of 20mA with 1kΩ load

Max. permitted voltage : 30V(between any two terminals or between any terminal and earth ground)

Operating temperature : 0°C～50°C

Operating relative humidity : ≤ 80%RH

Storage temperature : ≤ - 20°C～60°C

Relative humidity for storage : ≤ 90%RH

Temperature co-efficiency : 0.1×Basic accuracy/ ℃(Temperature<18℃ or >28℃)

Protection level : IP65(Dust,Water spray)

Display: 3.2 inch TFT color display

Size: 206(L)×97(W)×60(D)mm

Weight : 600g

Safety : EN61010-1:2001
