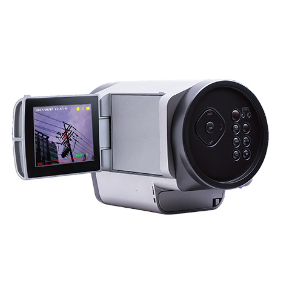

Wrindu COROTEK-V200 Ultraviolet camera for detecting high voltage discharge (H:6.4°-4.8°)

FOV: 8°

FOV(HXV)@1xZoom: H:6.4°-4.8°

Camera Focus and Working Distance:

- Visible Focus: Auto

- UV Focus Type: Auto

- Working Distance: 0.5m

Camera Sensivity:

- Wavelength Range: 185-260nm

- Min. Discharge: 6.8 pc@10m

- lllumination: 0.4 LUX

Camera Image Formation:

- Resolution an Uv Channel: 320x240

- lmage Modes: VIS.UV on VIS

Camera Display

- LCD Display: 3.5"LCD

- Displav Resolution: 320x 240

Image and Data Storage

- Storage: SD.4G(Max32GB)

- Storage Format: JPG,ASF

- Recordinglmage &Video): YES

- lmage Resolution: 1 (single pixel)

- Video Resolution: 736x576

GPS: N

Environmental Sensor: N

Camera Physical Specs:

- Size: 180x125x111

- Battery: Li-on Battery

- Use Time: 5 hrs

- Temperature: -15~55℃

Product characteristics:

1. Light and easy to carry

2. Simple to use

3. The maximum corona occurrence is displayed in the detection, and the abnormal degree of electric equipment can be judged from this

4. In case of corona, all conditions can be recorded or replayed in real time

5. It can be used for up to five hours at a time

6. Unique technology, which can effectively extend the life of the camera
