1. Measuring speed: 1 min- 2 min for single-phase winding
2. Output voltage: Vpp-25V, adjusting automatically in test
3. Output impedance: 50Ω
4. Input impedance: 1MΩ (the response channel is built with 50Ω matching resistance)
5. Frequency sweep scope: 10Hz-2MHz
6. Frequency accuracy: 0.001%
7. Frequency sweep manner: linear or logarithmic, frequency sweep interval and number of sweep points are freely settable
8. Curve display: Mag-freq. curve
9. Measuring dynamic range: -100dB~20dB
10. Power source: AC100-240V 50/60Hz
Product features:
1. Three phase precision inverter is used in the instrument to eliminate the harmonic effect of the mains voltage and make the measurement more accurate. When the working power supply is generator, there is no influence.
2. Three phase output voltage is adopted to improve the test speed. The angle between phases can be measured and the transformer connection group (0 ~ 11) can be automatically identified.
3. It is suitable for the measurement of a wide variety of transformers, such as Z-type transformer, rectifier transformer, grounding transformer, electric furnace transformer, phase-shifting transformer and balance transformer, with the most comprehensive measurement parameters.
4. High and low voltage reverse connection protection, transformer turn to turn short circuit protection, tap changer opening and closing not in place protection, output full short circuit protection, increase the stability of the instrument.
5. After inputting the rated parameters, the transformer turn ratio tester can automatically measure the transformer ratio, error value and tap changer tap position, especially for the tap changer with asymmetric tap connection, TTR can also accurately measure the exact position of the transformer tap changer, which can measure up to 99 tap changers tap positions.

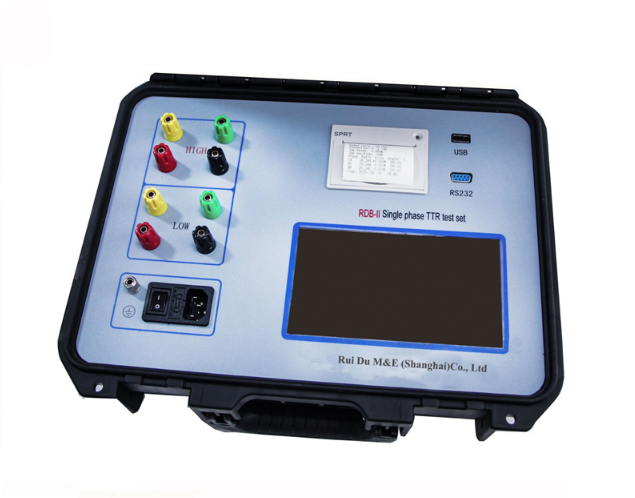

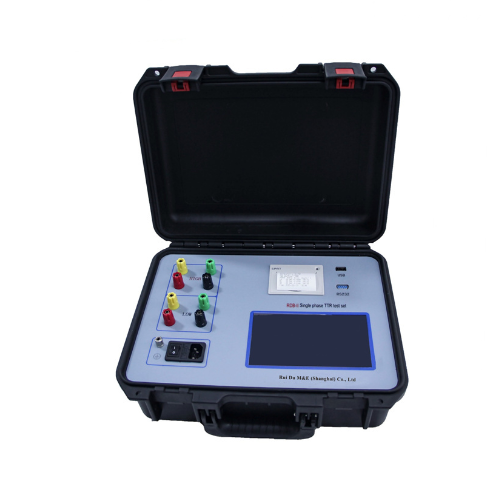

6. The TTR testing equipment adopts 7-inch high-definition color touch-screen LCD with modular display, and each operation step has menu prompt, so the instrument operation can be completed only by looking at the LCD prompt without manual.
7. The TTR tester has both printout, U disk interface and RS232 interface for paperless office.
8. The multi-functional engineering plastic box with cold and temperature resistance, sealing and waterproof, anti-falling and anti-shock is adopted for field test.
9. Download the special app, control the instrument through the special software, store and upload the test data for easy reference.
