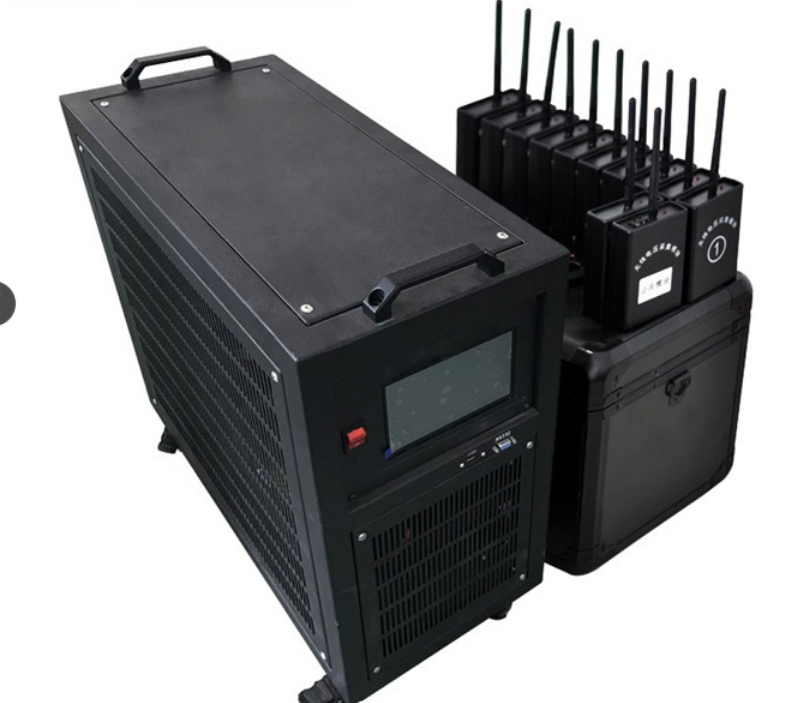

Wrindu RDBT-8606 Battery Charge And Discharge Tester (0～150A, 0～100A, 0～50A, 0～20A)

Working power supply: AC three phase four wire 380V

Battery pack voltage: DC48V, DC110V, DC220V, DC380V

Charge and discharge current: 0～150A, 0～100A, 0～50A, 0～20A

The accuracy of charge and discharge current: 1%

Current resolution: 0.1A or 1%

The accuracy of voltage test: 0.5%

Communication Interface: USB, RS232

Sampling interval: 10s

Working environment humidity : 5%～90%; Temperature: 0℃～+55℃

Cooling mode: forced air cooling
