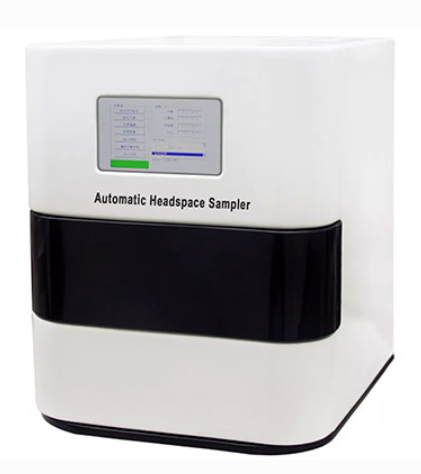

Wrindu RDHS-27A Automatic Headspace Sampler (Number of sample vials: 27)
1. Main parameters
Temperature range: 15°C to 200°C above room temperature, increment:1℃
Stability: ±0.1°C
Number of sample vials: 27
Preheating positions: 6
Sample vial volume: 10mL or 20mL
Repeatability: RSD ≤ 1.5% (ethanol: water)
Injection pressure range: 0 ~ 0.4MPa
2. Sample vial
Number: 27
Material: Neutral glass
Volume: 10mL or 20mL
Septum: Butylene rubber coated with teflon
Vial cap: Aluminum
3. Equilibration area
Preheating positions: 6
Temperature range: 15°C to 200°C above room temperature, increment:1℃
Accuracy: 0.5% of the full range
Stability: ±0.1°C
4. Sampling system
Temperature range:15°C to 200°C above room temperature, increment: 1℃
Accuracy: 0.5% of the full range
Stability: ±0.1°C
Sampling valve: 6-way valve (MV65/106HT, optional)
Sampling loop: 1mL nickel tube
5. Transfer line
Temperature range: 15°C to 200°C above room temperature, increment:1℃
Accuracy: 2.0% of the full range
Stability: ±0.5°C
6. Needle
Temperature range: 15°C to 200°C above room temperature, increment:1℃
Accuracy: 2.0% of the full range
Stability: ±0.5°C
7. Electric requirement
Power supply: 220V(±10%), 50Hz, 600VA; (110V±10%, 60Hz, 600VA optional)
Fuses: 5AT, 250V(220V); (10AT,250V(115V) , optional)
