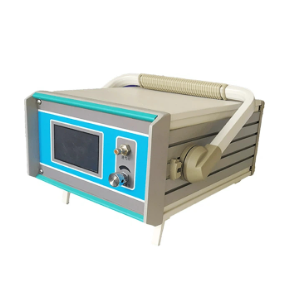

Wrindu RDLD-703 Chilled Dew Point Measurement System (-80℃ ～ +20℃)

Feature: No knob

Dew point range: ―80℃ ～ +20℃

Dew point accuracy: ±0.5℃

Resolution:

Dew point: 0.1℃

Micro water:

0.1ppm(100ppm ～1000ppm)

0.01ppm(10ppm ～ 100ppm)

Repeatability: ±0.1℃

Intake port: Imported quick self-locking interface

Cooling mode: air cooling

Pressure measurement: 0 ～ 1.0MPa

Flow measurement: 0 ～ 1.0L/min

Working environment:

Temperature: -10 ～ +50℃

Humidity: 0 ～ 90%RH

Working supply power: Lithium battery power supply, AC / DC dual-use, automatic switching, overcharge and over-discharge protection function

Dimension: 368×350×150(mm)

Weight: 8.8kg

Product features:

1. Intuitive Touchscreen Interface

2. Enhanced Pollution Resistance

3. Equipped with a High-Capacity Internal Battery

4. Sensitivity and Stability for Accurate Readings

5. Efficient Gas Usage and Quick Testing

6. Consistent Long-Term Stability and Repeatability

7. Comprehensive Measurement Suite: Gas Pressure, Flow, Temperature, and Humidity

8. Convenient Data Storage, Retrieval, and Printing Capabilities

9. Automatic Conversion to 20°C Standard Micro-Water Value

10. Vibrant 5-Inch Full-Color Screen for Real-Time Data and Curve Display

11. Protective Knob Feature for Sensor Longevity
