Vacuum pump *: Front pump 25L/S, roots pump rated constant speed 150L/S, final vacuum degree < 0.06Pa
The Conduit
Globe valve: 316. GU vacuum ball valve
Connection slot: DN8 type, used to connect SF6 gas recharging device
The Conduit
Globe valve: 316. GU vacuum ball valve
Vacuum meter: Electronic vacuum gauge
Globe valve 316. GU vacuum ball valve
Connector
Hose: Length 5m/3m, hydrophobic material composition
Connection plug-in: Various types of electrical equipment interface
Working voltage: AC 380V, 50Hz
Noise level: < 78dB
1. Electronic vacuum gauge;
2. Equipped with all kinds of imported and domestic SF6 Electrical equipment connection joints;
3. A variety of protection functions, effectively ensure the safe operation of the vacuum pump;

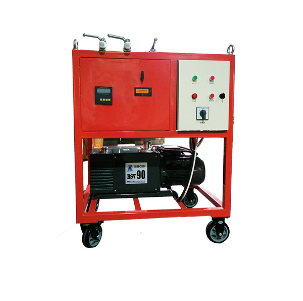

4. The SF6 Vacuum Pumping and Charging Device is easy to maintain. All the devices are made of high performance components, which can be used for a long time without maintenance.
Basic configuration of device:
Number | Name | Model | Number |
1 | Vacuum pump * | Front pump 25L/S, roots pump rated constant speed 150L/S, final vacuum degree < 0.06Pa | Each 1 |
2 | The Conduit | 1 | |
3 | Globe valve | 316. GU vacuum ball valve | 2 |
4 | Connection slot | DN8 type, used to connect SF6 gas recharging device | 1 |
5 | The Conduit | 1 | |
6 | Globe valve | 316. GU vacuum ball valve | 1 |
7 | Vacuum meter | Electronic vacuum gauge | 1 |
8 | Globe valve | 316. GU vacuum ball valve | 1 |
9 | Connector | 1 | |
10 | Hose | Length 5m/3m, hydrophobic material composition | 2 |
11 | Connection plug-in | Various types of electrical equipment interface | 1 |
