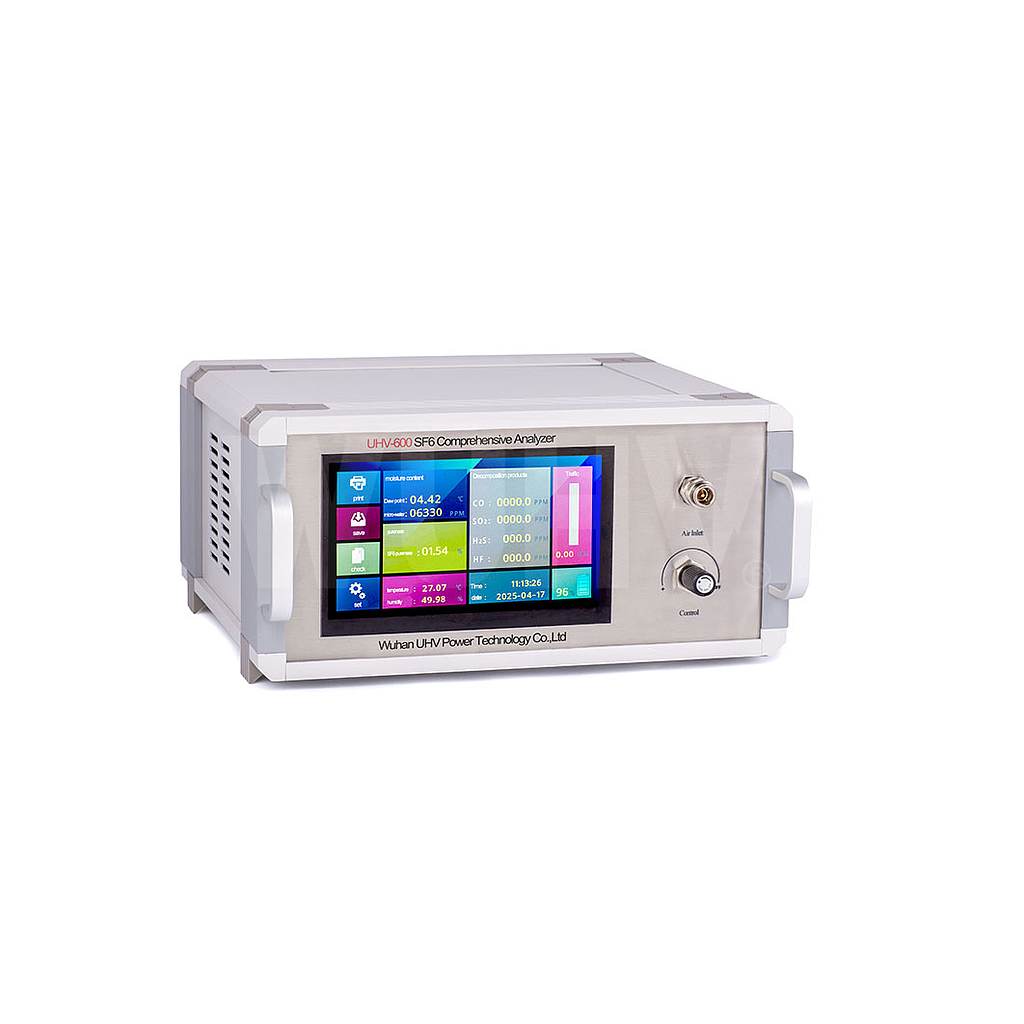

Wuhan UHV-600 SF6 Comprehensive Analyzer

Purity:

Test range: 0%～100%

Test accuracy: ±0.5%

Test time: <2min

Dew point

Measuring range: -80℃~+20℃

Measuring precision: ±0.5℃(-60℃~+20℃)

Response time(+20℃):

63% needs 5sec 90% needs 45sec(-60℃~+20℃)

63% needs 10sec 90% needs 240sec(+20℃~-60℃)

H2S

Measuring range: 0~200ppm

Minimum value: ≤0.1ppm

Measuring precision: ±0.5%

Stability: 0~200ppm

Repeatability: ≤2%

SO2

Measuring range: 0~200ppm

Minimum value: ≤0.1ppm

Measuring precision: ±0.5%

Stability: 0~200ppm

Repeatability: ≤2%

CO

Measuring range: 0~1000ppm

Minimum value: ≤0.1ppm

Measuring precision: ±0.5%

Stability: 0~1000ppm

Repeatability: ≤2%

Intake pressure: 0~1.0 Mpa

Flow: 0.01~1.00L/min

Ambient temperature: -40℃~+60℃

Ambient Humidity: 0~100% RH

Power: AC 100~240V 50Hz or 60Hz

Built-in high capacity lithium-ion rechargeable battery

Battery performance: Charging 8 hours can work for more than 8 hours.

Working temperature: -30℃~+70℃

Size: 280×140×300(mm)

Weight: 6.8kg
