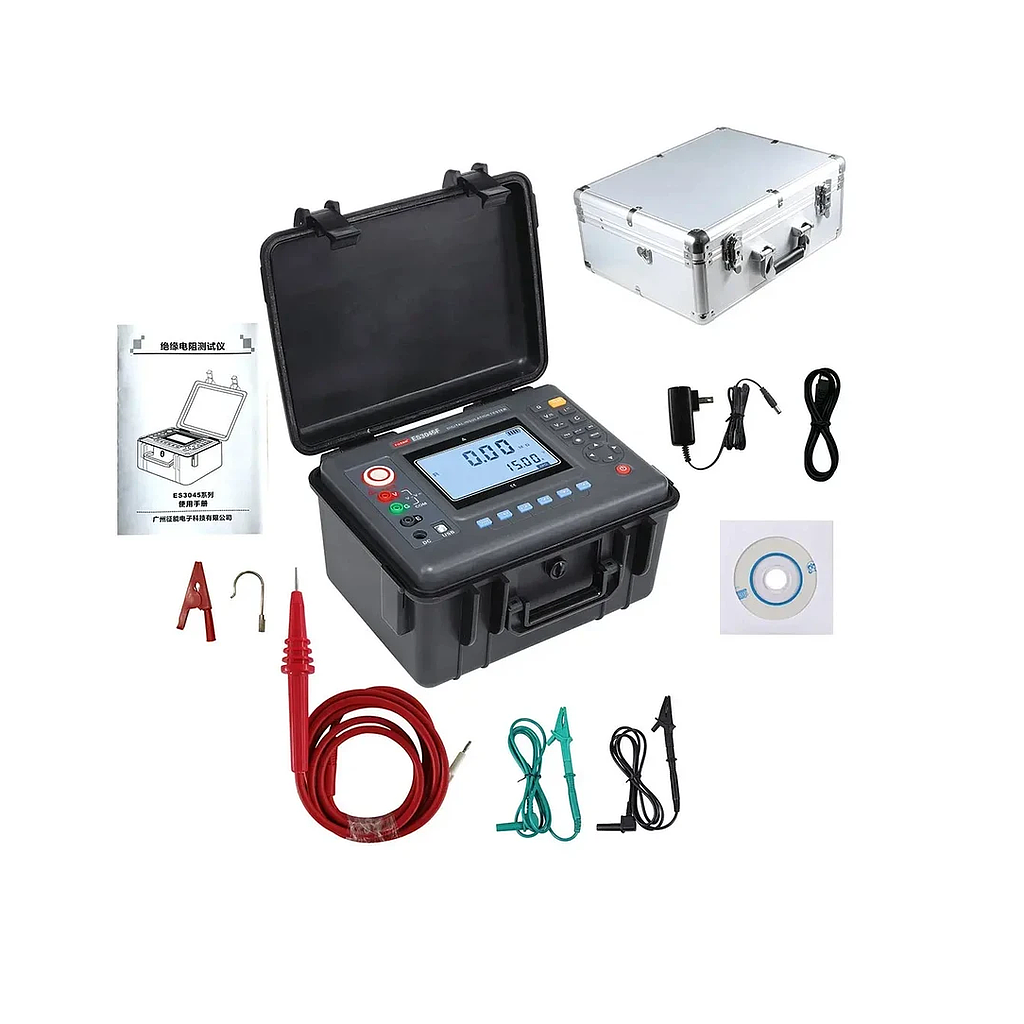

XZH Test XHMR-15KVA Digital High-Voltage Insulation Resistance Tester (0.01MΩ~50TΩ)

Function: Insulation resistance test, voltage test

Baseline Conditions: 23ºC±5ºC,75%rh below

Rated Voltage: 500/1000/2500/5KV/10KV/15KV

Insulation Resistance Range: 0.01MΩ~50TΩ; Resolution:0.01MΩ

Measuring Voltage (V): Rated voltage×(1±10%)

Capacitance: 1nF-50uF

Output Short Circuit Current: ≥6mA@10KV

Absorption Ratio And Polarization Index Measurements: with

Power Supply: 12.6V Rechargeable lithium battery

Backlight: Controllable gray and white screen backlight, suitable for use in dark places

Display Mode: 4-digit large LCD display, gray and white screen backlight

Lcd Display Size: 108mm×65mm

Meter Size: length width height:277.2mm×227.5mm×153mm

Usb Interface: With USB interface, software monitoring, storage data can be uploaded to the computer, save and print

Communication Line: USB 1 communication line

Test Lead: High voltage bar red 3 meters, high voltage test line black 1.5 meters, green line 1.5 meters

Data Storage: 500 groups, flashing "FULL" symbol indicates that the storage is full

Data Access: Data access function: "MR" symbol display

Overflow Display: Over range overflow function: "OL" symbol display

Alarm Function: If it is greater than or less than the set value, an alarm prompt will be issued.

Power Consumption: Standby: 30mA Max (backlight off), turn on the backlight: 42mA Max, Measurement: 200mA Max (backlight off)

Weight: 2750g

Battery Voltage: Low battery voltage, showing low battery symbol

Automatic Shut-Down: The meter shuts down after 15 minutes of inactivity

Insulation Resistance: ≥50MΩ(between measurement line and enclosure)

Voltage Withstand: AC3kV/50Hz 1min

Operating Temperature And Humidity: -10ºC~+50ºC<85%RH

Storage Temperature And Humidity: -15ºC~+55ºC<90%RH

Suitable For Safety Regulations: IEC61010-1,IEC1010-2-31,IEC61557-1/5,IEC60529(IP54)
