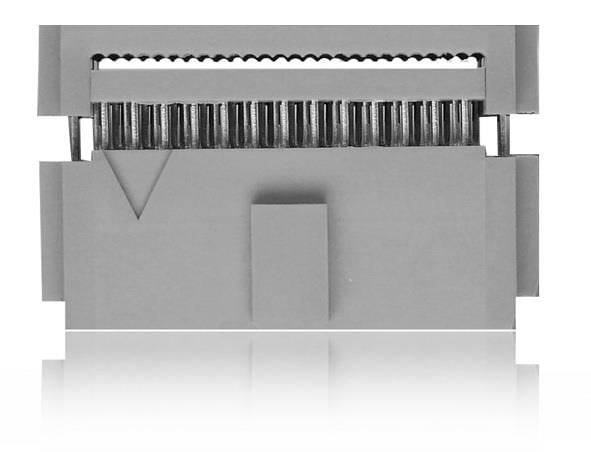

Yamaichi Electronics NFS-80A-0111-A コネクタ IDCタイプ ソケット 80P /Idc Rec/ Conn

Pitch: 1.27 mm (0.05 in)

Unit Weight: 9.440 g

Current Rating: 500 mA

Voltage Rating: 200 V

Contact Material: Copper Alloy

Housing Material: Polyphenylene Sulfide (PPS)

Termination Style: Solder

Number of Positions: 80 Position

Insulation Resistance: 100 mOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 55 C
