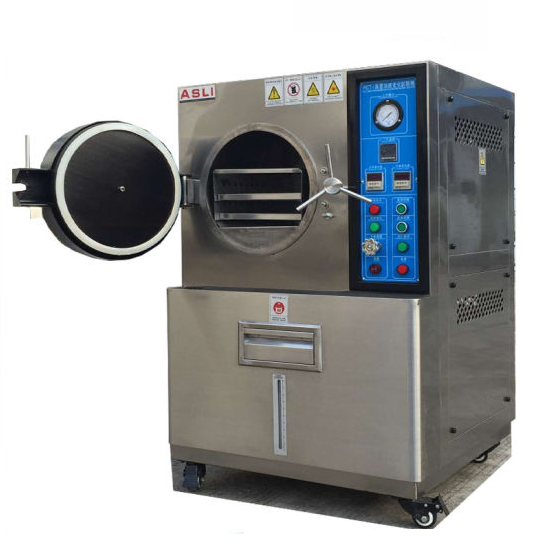

ASLI PCT-55 圧力クッカーテスター(PCTチャンバー/不飽和タイプ)

  • 生産者: ASLI
    Model: PCT-55
    • 要件クオート 要件クオート
  • 連絡先
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

Internal Dimension
Φ×D (mm)

550×650

External Dimension (mm)

1050×1550×1100

Temperature Range
of Saturated Steam
(Operating temperature)

(Temperature Rangeof Saturated Steam:100℃~135℃) ,Temperature Range: 120℃,100Kpa/ 133℃  200 Kpa;(143℃is special order)

Relative Pressure/ Absolute Pressure

Relative pressure: display values  indicated on the  pressure gauge

Absolute pressure: Value that add 100 Kpa based on display values indicated on the  pressure gauge  (The actual value in the inner box)

Humidity of Saturated Steam

100%RH saturation steam humidity

Steam Pressure(Absolute Pressure)

101.3Kpa +0.0Kg/cm2 ~ 2.0Kg/cm(3.0Kg/cm2  is special standard)

Recursive Device

Steam Natural convection circulation

Safety Protective Devise

Water short storage protect, over pressure protect. (have automatically/manual water replenishing, automatically discharge pressure function )

Equipment Capacity(L)

155

Powder

 AC 220V, 1∮ 3  Lines ,50/60HZ ;

Accessories

Two layers  stainless steel plate

Details

Datasheet
