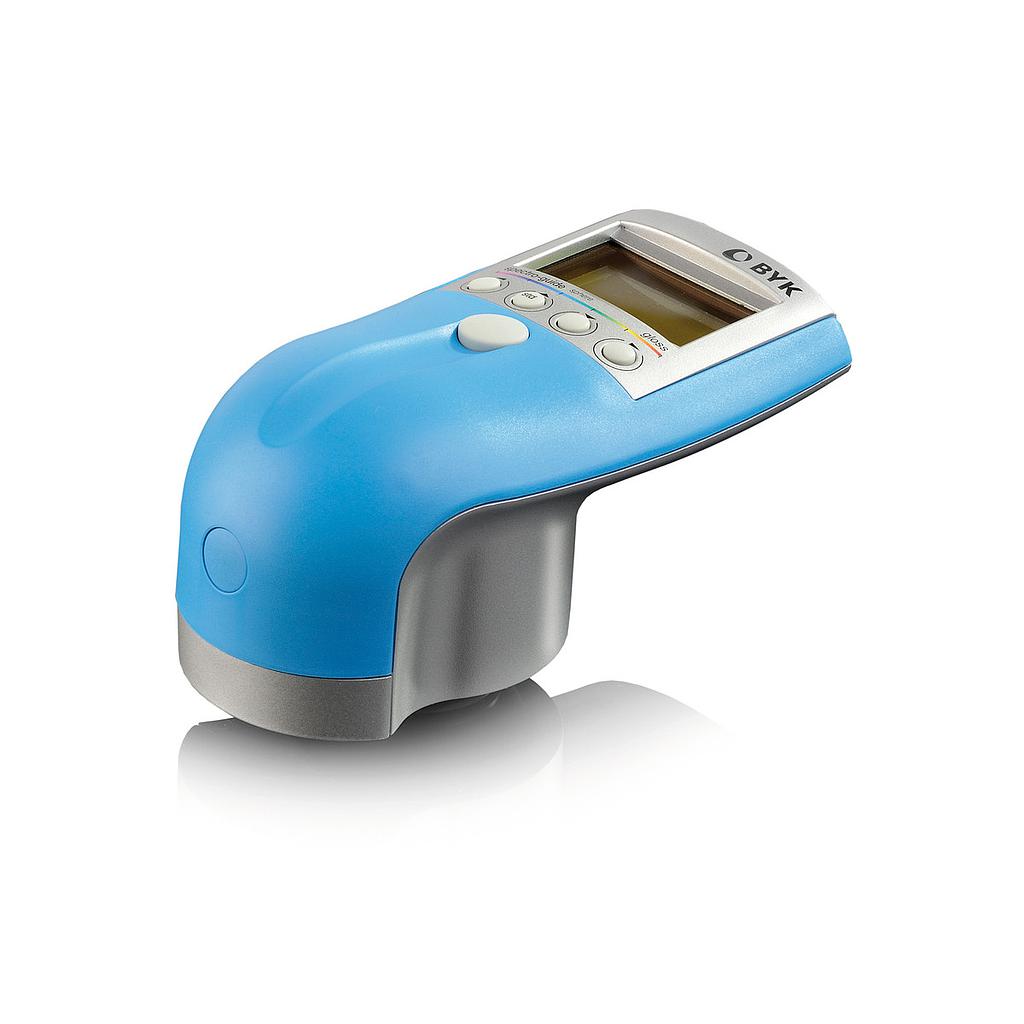

BYK spectro-guide 45/0 gloss S 基本作業向けカラー測定

Technical Properties

Measuring Capability: color, gloss

Technical Specifications

Color Geometry - Gloss Specs: 45/0 - tight gloss specification

Color Measurement:

Color Geometry: 45/0

Gloss Performance: tight gloss specification

Sample Port: 11 mm

Spectral Range Colorimetric: 400 - 700 nm, 10 nm resolution

Repeatability Color: 0.01 ΔE* (10 consecutive measurements on white)

Reproducibility Color: 0.2 ΔE* (average of 12 BCRA tiles)

Color Systems: CIELab/Ch, Lab(h), XYZ, Yxy

Color Indices: YIE313, YID1925, WIE313, CIE, Berger, Color Strength, Opacity, Metamerism

Illuminants: A, C, D50, D55, D65, D75, F2, F6, F7, F8, F10, F11, UL30

Observer: 2°, 10°

Gloss Measurement:

Repeatability Gloss 0-20: ± 0.1 GU

Repeatability Gloss 20-100: ± 0.2 GU

Reproducibility Gloss 0-20: ± 0.5 GU

Reproducibility Gloss 20-100: ± 1.0 GU

Gloss Geometry: 60°

Gloss Aperture: 5 x 10 mm

Measurement Range Gloss: 0 - 100 GU

General:

Memory: 1500 Standards and 999 Samples

Languages: English German French Italian Spanish Japanese Chinese

Power supply: 4 AA alkaline; NiCd or MH batteries

Weight: 0.5 kg

Weight: 1.1 lb

Operating temperature: 10 - 40 °C

Storing temperature: 0 - 60 °C

Operating temperature: 50 - 104 °F

Storing temperature: 32 - 140 °F

Relative humidity: Up to 85 % non-condensing at 35 °C (95 °F)

Dimensions: L x W x H: 18 x 8 x 9.5 cm

Dimensions: L x W x H: 7 x 3.2 x 3.7 in
