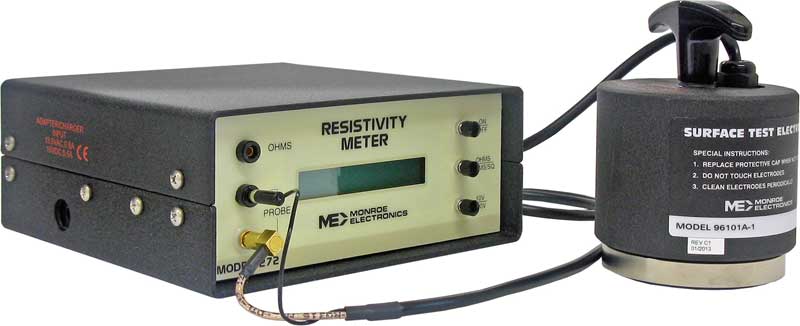

モンロー272A / 220Vハンドヘルド表面抵抗計

  • 生産者: Monroe
    Model: 272A/220V
    起源: USA
    品物を保証します: 12 month
    • 要件クオート 要件クオート
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

Specifiations:

Resistivity Range: 8 x 104 to 2.0 x 1014 Ω/squared

Resistance Range: 8 x 103 to 2.0 x 1013 Ω

Accuracy:

±0.1 decade thru 10E12, ±0.15 decade above 10E12 (typical);

±0.1 decade thru 10E9, ±0.15 decade thru 10E11; ±0.2 decade above 10E12 (max)

Resistivity Measuring Voltage:

8.0 x 104 Ω/squared to 2.0 x 1013 Ω/squared: 10 volts

1.1 x 106 Ω/squared to 2.0 x 1014 Ω/squared: 100 volts

Resistance Measuring Voltage:

1.1 x 105 Ω to 2.0 x 1013 Ω: 100 volts

8.0 x 103 Ω to 2.0 x 1012 Ω: 10 volts

Display Type: 16-char. alphanumeric LCD

Information Shown: Operating mode, measured Ω or Ω/squared in log or scientific notation, applied voltage, low battery indication

Power: 220V

Battery Life: Up to 8 hours continuous operation per charge

Electrode Type: Monroe Model 96101A-1 Guarded-ring-type designed to ASTM D-257

Weight: 2.3 kg

Outer Electrode Ring Inside Diameter: 5.7 cm

Outer Electrode Ring Thickness: 0.32 cm

Inner Electrode Disc Diameter: 3.0 cm

Elecrode/Meter Cable Length: 0.9 m

Meter Dimensions: 6.4 x 15.2 x 15.2 cm

Accessories Included: Manual on CD, Surface test electrode, surface to ground adapter, specimen plate, power supply, carrying case, connecting cable

Optional Probes:

Model SE0032 Mini Guard Ring Probe

Model 96163 Point-to-Point Probe
