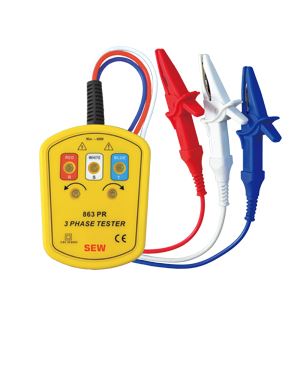

SEW 863 PR フェーズ手順インジケータ(接触タイプ)

  • 生産者: SEW
    Model: 863PR
    • 要件クオート 要件クオート
  • Price (exclude tax) 752,000 VND
    Price (include tax) 827,200 VND
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

Input voltage:  100-500V AC
  Frequency range:  45 - 70 Hz
  Circuit structure:  All electronic (not mechanical)
   Dimensions :  102(L) × 78(W) × 32.5(D)mm
 Weight:  Approx. 228g
  Safety standard:  EN 61010-1 ,EN 61326-1
Accessories Instruction manual Soft pouch

Chi tiết



FEATURES
● Two functions in one unit: open phase and phase
    sequence detection.
● Neon light indicators.
● Large size alligator clips for easy clipping onto switch-
    boards terminals.
● Allows you to check a wide range of 3-phase power
    sources.
● Special test leads length are available on request.

  SPECIFICATIONS

  Input voltage   100-500V AC
  Frequency range   45 - 70 Hz
  Circuit structure   All electronic (not mechanical)
  AC power consumption   Approx. 7mA
  Dimensions   102(L) × 78(W) × 32.5(D)mm
 Weight   Approx. 228g
  Safety standard   EN 61010-1 CAT III 500V
  EN 61326-1
