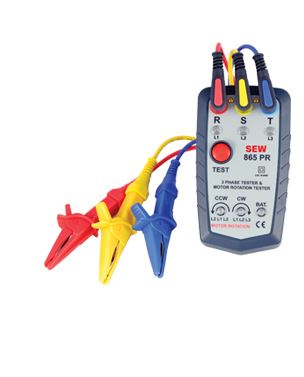

SEW 865 PRフェーズ手順インジケータ(接触タイプ)

  • 生産者: SEW
    Model: 865PR
    • 要件クオート 要件クオート
  • Price (exclude tax) 1,621,500 VND
    Price (include tax) 1,783,650 VND
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

Input voltage   100-500Vac
  Frequency range   40Hz-400Hz
  Operating temperature
  & humidity   0°C ~ 40°C Max. 80% R.H.
  Storage temperature
  & humidity   -10°C ~ 50°C Max. 80% R.H.
  Cable length   Approx. 1m
  Dimensions   128(L) x 72(W) x 44(D)mm
  Weight
  (battery included)   Approx. 220g
  Power source   9V (6F22) × 1
  Safety standard   EN 61010-1 CAT III 500V
  EN 61326-1  EN 61557-1
  EN 61557-7
Accessories Instruction manual,Test leads Soft pouch,Battery

Chi tiết



FEATURES
● The 865 PR is a detector with LEDs to show the de-
    tection better visible than neon.
● Three functions in one unit, including open phase,
    phase sequence and 3 phase motor rotation.
● Designed for checking a wider range of 3 phase
    power source from 100V to 500V.
● Indicates R.S.T LEDs which frequency range from 40Hz to 400Hz.
● Wide range detection of motor frequency range from 2Hz to 400Hz.
● Fixed magnets for convenient measurement.

  SPECIFICATIONS

  Measurement principle   Contact Live Wire
  Input voltage   100-500Vac
  Frequency range   40Hz-400Hz
  Operating temperature
  & humidity
  0°C ~ 40°C Max. 80% R.H.
  Storage temperature
  & humidity
  -10°C ~ 50°C Max. 80% R.H.
  Cable length   Approx. 1m
  Dimensions   128(L) x 72(W) x 44(D)mm
  Weight
  (battery included)
  Approx. 220g
  Power source   9V (6F22) × 1
  Safety standard   EN 61010-1 CAT III 500V
  EN 61326-1  EN 61557-1
  EN 61557-7
