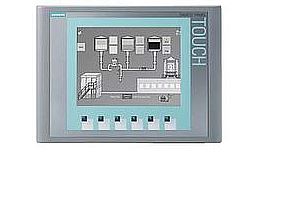

Siemens SIMATIC HMI KTP400 6AV6647-0HA11-3AX0

  • 生産者: SIEMENS
    Model: 6AV6647-0HA11-3AX0
    品物を保証します: 12 month
    • 要件クオート 要件クオート
  • 連絡先
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

General information

Product type designation KTP Basic mono PN


Design of display STN

Screen diagonal 5.7 in

Display width 115.2 mm

Display height 86.4 mm

Number of colors 4; Grayscales

Resolution (pixels)

● Horizontal image resolution 320 Pixel

● Vertical image resolution 240 Pixel


● MTBF backlighting (at 25 °C) 50 000 h

● Backlight dimmable No

Control elements

Keyboard fonts

● Function keys

— Number of function keys 6

● Keys with LED No

● System keys No

● Numeric keyboard Yes; Onscreen keyboard

● alphanumeric keyboard Yes; Onscreen keyboard

Touch operation

● Design as touch screen Yes

Installation type/mounting

Mounting position vertical

Mounting in portrait format possible Yes

Mounting in landscape format possible Yes

maximum permissible angle of inclination without

external ventilation


Supply voltage

Type of supply voltage DC

Rated value (DC) 24 V

permissible range, lower limit (DC) 19.2 V

permissible range, upper limit (DC) 28.8 V

Input current

Current consumption (rated value) 0.24 A

Starting current inrush I²t 0.5 A²·s


Active power input, typ. 6 W


Processor type RISC 32 bit


Flash Yes


Memory available for user data 1 Mbyte

Type of output


● Buzzer Yes

● Speaker No

Time of day


● Hardware clock (real-time) No

● Software clock Yes

● retentive No

● synchronizable Yes

Number of industrial Ethernet interfaces 1

Number of RS 485 interfaces 0

Number of RS 422 interfaces 0

Number of RS 232 interfaces 0

Number of USB interfaces 0

Number of 20 mA interfaces (TTY) 0

Number of parallel interfaces 0

Number of other interfaces 0

Number of SD card slots 0

With software interfaces No

Industrial Ethernet

● Industrial Ethernet status LED 2
