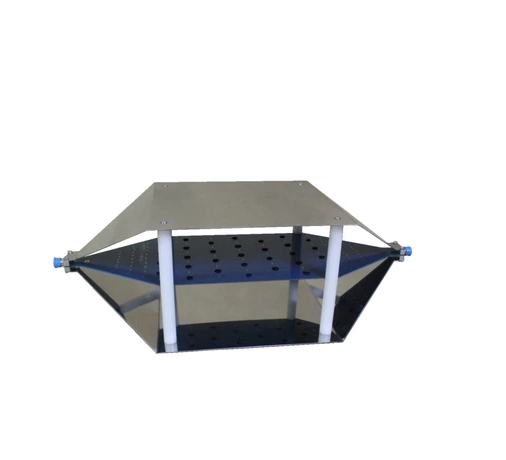

アンテナタイプTEMセルTekbox TBTC2

  • 生産者: Tekbox
    Model: TBTC2
    品物を保証します: 12 month
    • 要件クオート 要件クオート
  • Price (exclude tax) 20,654,150 VND
    Price (include tax) 22,719,565 VND
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

  • 良質な取り決め
  • オリジナル保証
  • 宅配便
  • 買い取り簡単化

Manufacturer: Tekbox

Model: TBTC3

Warranty: 12 months


TEM cell dimensions:

Length: 1038 mm

Width: 501 mm

Height: 305 mm

Septum height: 150 mm

TEM cell connectors: N-female

Nominal cell impedance: 50 Ohm

Wave impedance: 377 Ohm

Maximum RF input power: 25W

Input return loss: S11 up to 700 MHz < -16dB

Transmission loss: up to 730 MHz < 3 dB

DC-Block 50V-6GHz-N

Connectors: N-Male/Female

Nominal impedance: 50 Ohm

Max. continuous RF power: 2W

Max. continuous RF voltage: 50V RMS

Frequency: 500kHz to 6 GHz

VSWR: ≤ 1.2

RF-Termination 50Ω-3GHz-25W-N

Connector: N-Male

Nominal impedance: 50 Ohm

Max. continuous RF power: 25W

Frequency: DC to 3 GHz

VSWR: ≤ 1.2

Third order intermodulation: ≤ 120 dBc
