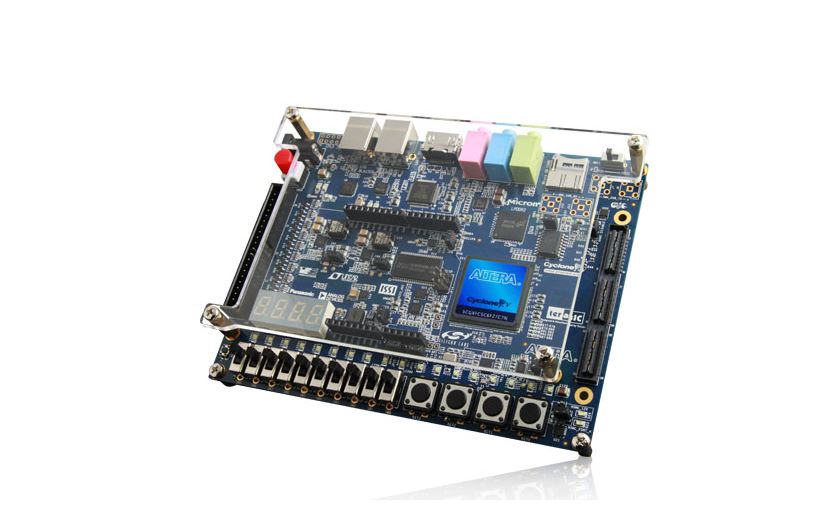

Terasic Cyclone V GX　スターターキット

1. FPGA Device
    Cyclone V GX 5CGXFC5C6F27C7N Device
    77K Programmable Logic Elements
    4884 Kbits embedded memory
    Six Fractional PLLs
    Two Hard Memory Controllers
    Six 3.125G Transceivers
2. Configuration and Debug
    Quad Serial Configuration device – EPCQ256 on FPGA
    On-Board USB Blaster (Normal Type-B USB connector)
    JTAG and AS mode configuration supported
3. Memory Device
    4Gb LPDDR2 x32 bits data bus
    4Mb SRAM x16 bits data bus
4. Communication
    UART to USB
5. Expansion I/O
    HSMC x 1(voltage levels: 2.5V), including 4-lanes 3.125G transceiver
    2x20 GPIO Header (voltage levels: 3.3V)
    Arduino header, including analog pins
    SMA x 4 (DNI), one-lane 3.125G transceiver
6. Display
    HDMI TX, compatible with DVI v1.0 and HDCP v1.4
7. Audio
    24-bit CODEC, Line-in, line-out, and microphone-in jacks
8. Switches, Buttons, LED, and 7-Segments
    18 LEDs
    10 Slide Switches
    4 Debounced Push Buttons
    1 CPU reset Push Buttons
    Four 7-Segments
9. Micro SD Card Socket
    Provides SPI and 4-bit SD mode for SD Card access
10. ADC
    12-Bit Resolution, 500Ksps Sampling Rate. SPI Interface.
    8-Channel Analog Input. Input Range : 0V ~ 4.096V.
11. Power
    12V DC input
12. Kit contents
    Cyclone V GX Starter Kit board
    Cyclone V GX Starter Kit Quick Start Guide​
    Type A to B USB Cable
    Power DC Adapter (12V)
