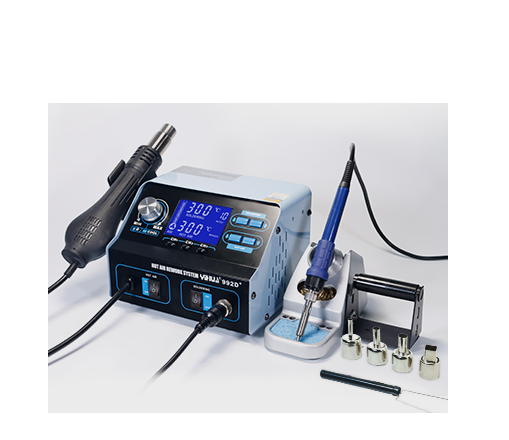

YIHUA YH-992D+ 熱風と冷気および3モードのはんだ付けはんだ除去ステーション (720W±10%)

  • 生産者: YIHUA
    Model: YH-992D+
    P/N: yh992d+
    起源: China
    品物を保証します: 6 month
    • 要件クオート 要件クオート
  • Price (exclude tax) 3,042,000 VND
    Price (include tax) 3,346,200 VND
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

Machine Parameters

Rated voltage: AC 220V±10%  50Hz

Total Power: 720W±10%(max)

300℃ Constant Temperature Power (High-Speed PID Programmed to Energy Savings): 250W±10%

Operating Environment: 0~40℃ Relative humidity<80%

Storage temperature: -20~80℃  Relative humidity<80%

Dimensions: 31.5*22*22cm

Weight: 3.5KG

Performance Parameter

Hot Air Gun

Operating Voltage: AC 220V±10%  50Hz

Output power: 650W

Temperature Range: 100℃~480℃

Air Supply Mode: Brushless-Motor Fan

Airflow: 120L/min(max)

Temperature stability: ±1℃ (static)

Display Mode: LCD

Calibration Mode: PID Digitally Programmed Calibration

PID Temperature Calibration Cycle: Rapid 20ms

Heating Core: Ceramic Framed Heating Core

Soldering iron

Operating Voltage: AC 26V±10%  50Hz

Output power: 75W

Temperature Range: 200℃~480℃

Temperature stability: ±1℃ (static)

Display Mode: LCD

Calibration Mode: PID Digitally Programmed Calibration

PID Temperature Calibration Cycle: Rapid 20ms

Heating Core: Imported High-Powered Heating Core

Tip-to-Ground Impedance: <2Ω

Tip-to-Ground Voltage: <2mV
