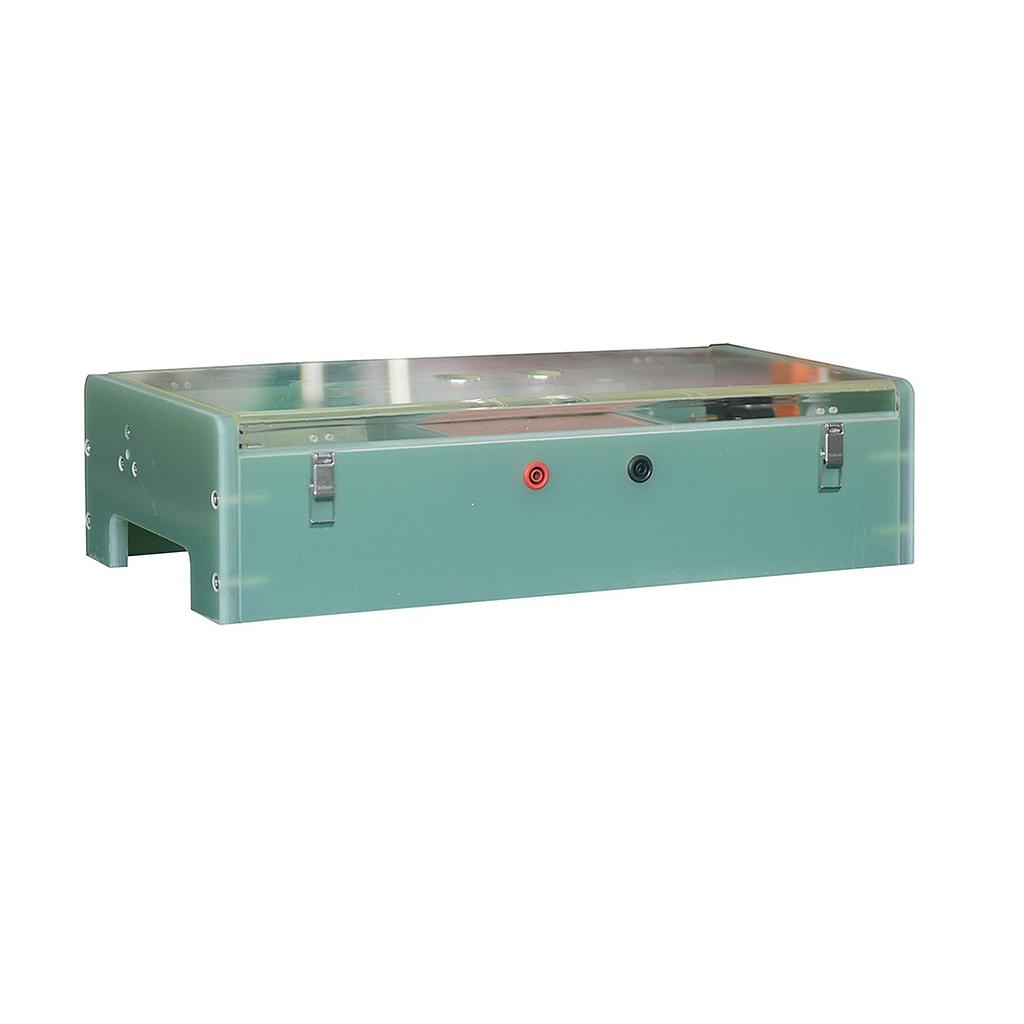

3ctest EDS 20H-ST Electrostatic Discharge Immunity Test Platform (6 kV (±30%); 30 A (±20%))

- Technical Parameters

Discharge Voltage: 6 kV (±30%)

Peak Current: 30 A (±20%)

Pulse Time-width: 30 ns (±20%)

Polarity: +, -

RC Module Detection: Automatic detection and shown on LCD screen

Hygrothermograph: Built-in type, for recording and protection

Repetition Frequency: Single / 0.5 Hz, 1 Hz, 2 Hz

Triggering Mode: Manual, Automatic

No. of Pulses: 1-9999

Capacitance: 50 pF / 47 ohm

Test Procedures: As per ECSS-E-ST-20-07C

- General Parameters:

Dimension: 320 x 220 x 100 mm

Weight: About 5kg

Operating Environment: 15℃-35℃

Comparative Humidity: 30%-60%

Operating Air Pressure: 86kPa-106kPa

Operating Method: To be used with EDS 20H or EDS 16H
