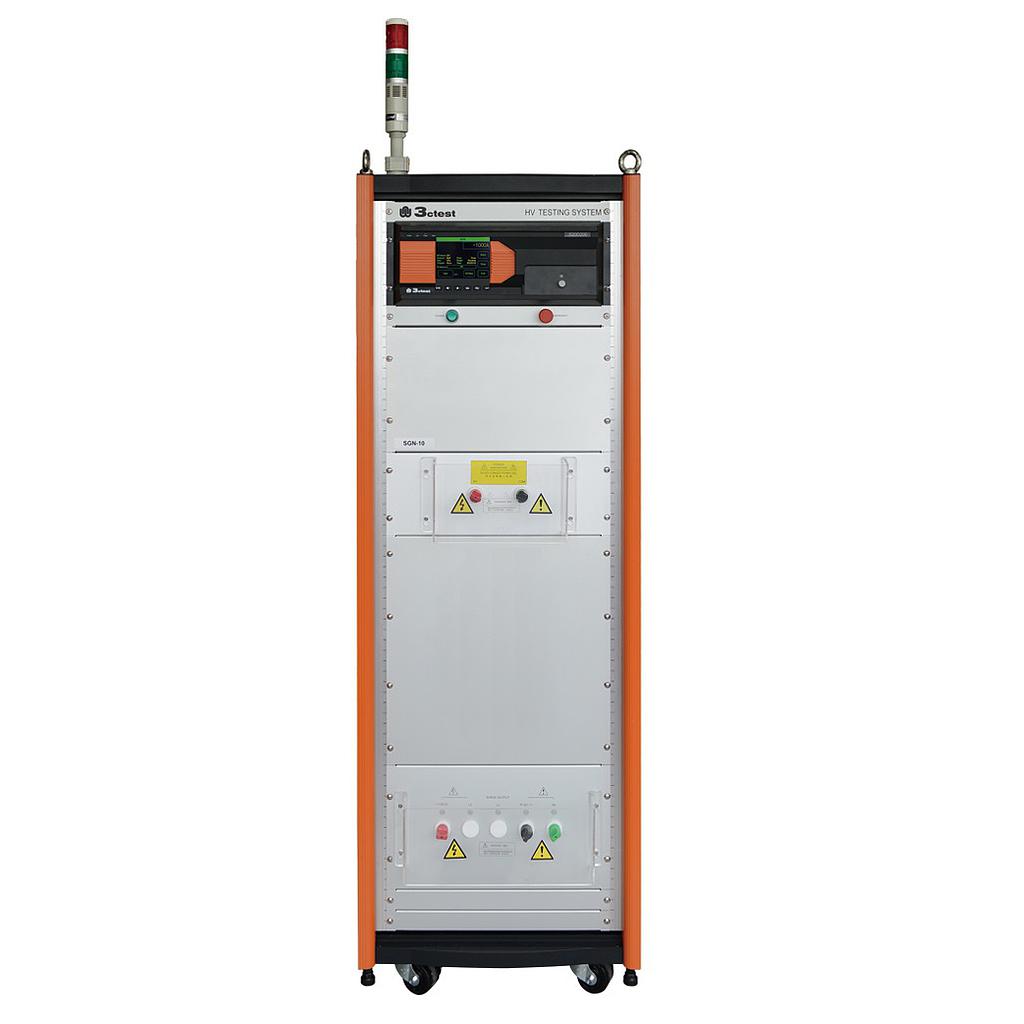

3ctest S20D200 임펄스 전류 시뮬레이터 (100 A ~ 2000 A, ±10%; 1 kV ~ 20 kV)

Test Current: 100 A ~ 2000 A, ±10%

Charging Voltage: 1 kV ~ 20 kV

Current Waveform:

Rise time (10% ~ 90%): 10 μs ±20%

Duration (50% ~ 50%): 1000 μs ±20%

Polarity: Positive/ negative/ alternative

Source Impedance: 10 Ω

Repetition (time for single pulse): 5 s ~ 1000 s (The minimum time is subjected to test voltage)

Counter: 1~10000

Phase Sync.: 0° ~ 360°（45 Hz ~ 65 Hz）

Pulse Current Monitor: External, optional

Trigger Mode: Manual, Auto, External Trigger

Dimension: 19” / 35U

Weight: Approx. 200 kg

- General Parameters:

Display Screen: 5.7” TFT touch screen

Working Power: AC 110 V/220 V（±10%）, 50 Hz /60 Hz (220 V in mainland China）

Fuse: 6 A

Max. Power: 500 W

Communication Mode: Ethernet LAN, RJ45

External Control Mode: 25-pin parallel port cable

External Trigger Input: BNC, 5 V TTL, the node is open, oscilloscope can trigger the product when internal circuit is closed.

Running Control Input: BNC, 5 V TTL

Failure Detection: The failure information will be displayed on LCD in front panel when failure occurs and interrupt the working of instrument.

Working Status Indication: LED indication and LCD display on front panel

Earthing Mode: Flat earth line

Monitor Output Mode: Standard 1 m coaxial cable

Ambient Temperature: 15 ℃ ~ 35 ℃

Relative Humidity: 45% ~ 75%

Atmospheric Pressure: 86 kPa ~ 106 kPa

Datasheet

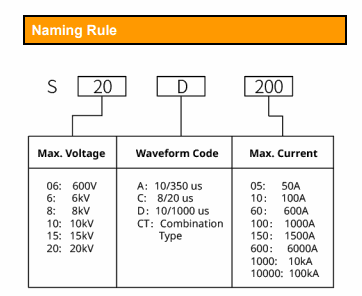

Naming Rule
