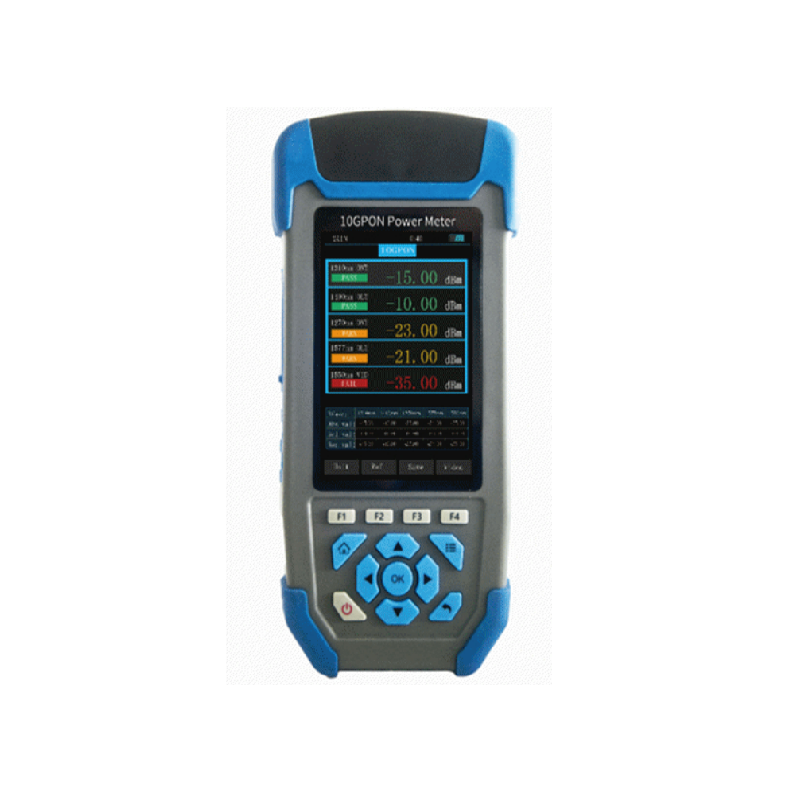

PON Power Meter Mode
Measuring wavelength: 1270nm/ 1310nm/ 1490nm/ 1550nm/ 1577nm (can be customized)
Measuring rangedBm): +13~-40/ +13~-40/ +13~-50/ +25~-50/+10~-50
Spectral passband (nm): 1270±10/ 1310±20/ 1490±10/ 1550±10/ 1577±6
Insertion loss: ≤1.5 dB
Uncertainty: ≤0.5 dB
Interface type: (FC/SC)/APC (optional)
Display resolution: 0.01dB
Threshold settings: 10group
Data storage: 1000
Standard OPM mode
Measuring range: +26~-50 dBm
Calibration wavelength: 850/1300/1310/1490/1550/1625 nm
Uncertainty: ≤0.5dB
VFL
Wavelength: 650±10 nm
Output power: 10 mW
Modulation frequency: Lighting form, 1HZ
Others
Operating temperature: -10~+60℃
Storage temperature: -25~+70℃
Relative humidity: 0%~95%RH
Communication interface: Micro USB
Power supply: Rechargeable 3.7V lithium battery/Micro USB
Operating time: ≥20H,stand-by time ≥60H
Dimension: 188mm×88mm×44mm
Weight: 400g
Packing List: Main unit, user manual, certification, FC/SC connector, 5V power adapter, micro USB line, Data CD
