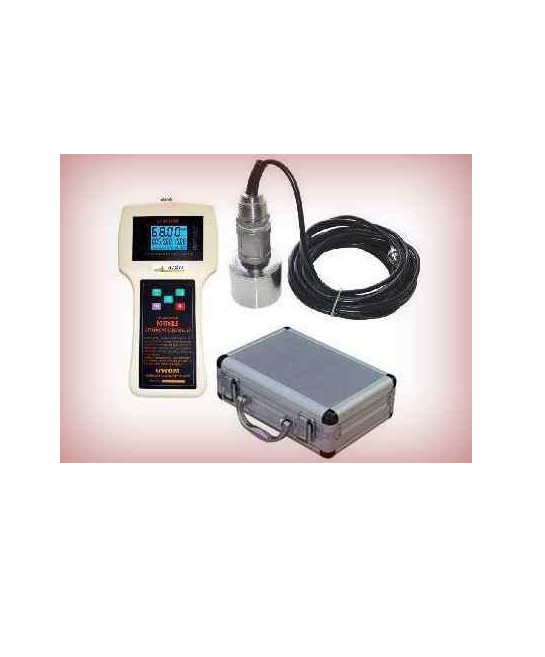

A.YITE GE-103P Ultrasonic Echo Sounder Depth Meter (5 m ~ 50 m ~ 100 m ~ 200 m ~ 300 m)

Depth Range: 5m~50m~100m~200m~300m

Accuracy: -/+0.3% ~ 0.5% (20C water temperature)

Blind Spot: < 2%~5%FS

Draft Depth: >500mm

Detection Method: 1HZ/s (0.1~100HZ/s is available)

Wave Beam angle: 18+/-2 degree

Work Frequence: 50KHz~200KHz (Different transducer will be different)

Output: 4~20mA (Standard, 1~5V and RS485 is available)

Power Supply: Built-in Lithium battery, work more than 6 hours

Battery Charger: 110VAC ~ 240VAC 50HZ/60HZ

Work Media: Water and Sea water

Weight: 4.5KG
