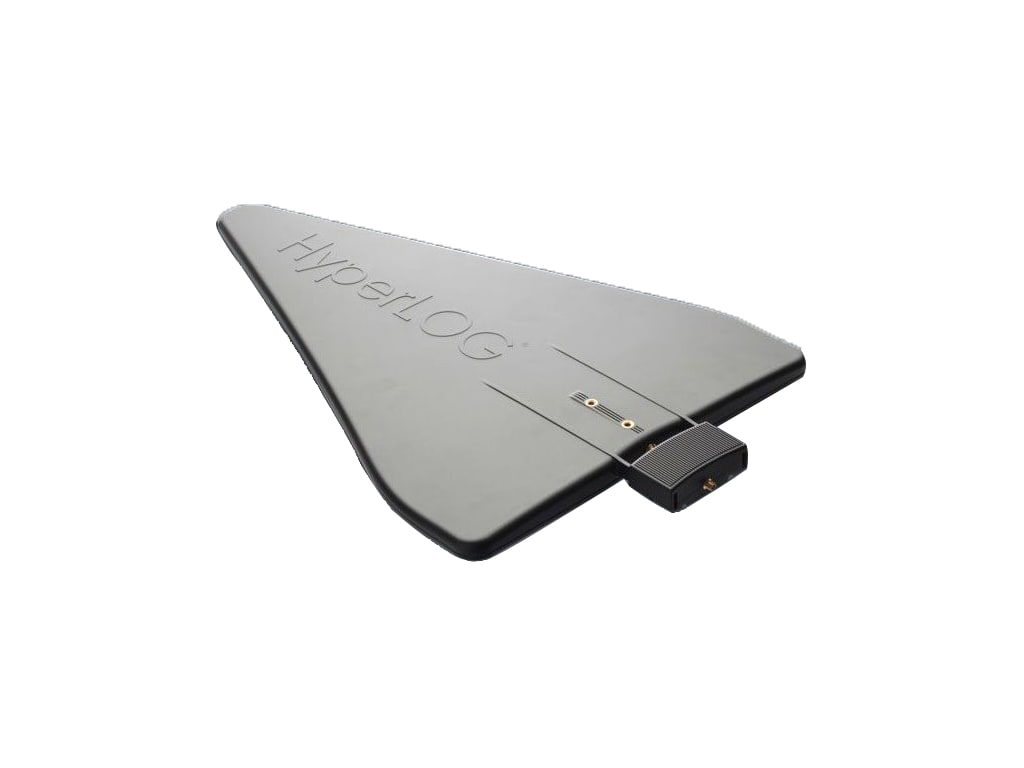

AARONIA HyperLOG PRO 70260 High performance DF Antenna (700MHz – 26.5GHz)

Dimensions [L x W x D]: 590 x 360 x 30 mm

Weight: 1200g

Design: LPDA Hybrid

Gain (typ.): 13 dBi

RF Connection: 2.92 mm K (f)

Frequency Range: 700MHz – 26.5GHz

Nominal Impedance: 50 Ohm

Calibration Points: 1033 (25MHz steps)

VSWR (typ.): < 1.3:1

Max. Transmission Power: 100 W CW (6 GHz)

Antenna Factor: 22 – 50 dB/m

HPBW: min. 17°
