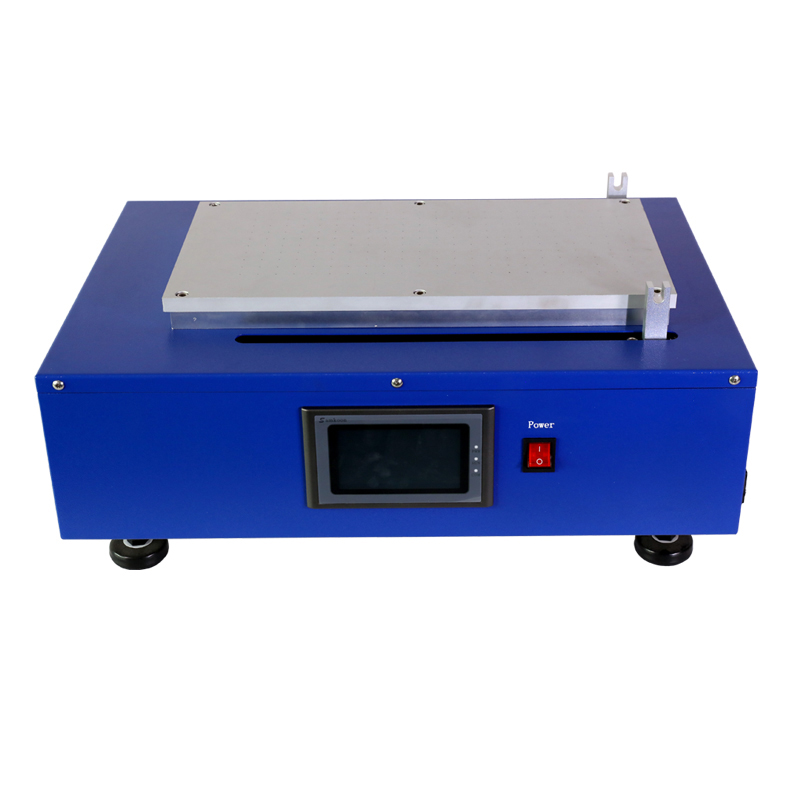

ACEY ACEY-FC250 Adjustable Lab Vacuum Coating Machine For 18650 Battery Electrode Coating (0～100mm/sec)

Film coating speed: 0～100mm/sec

Coating width: 0～150mm (customizable)

Travel: 300mm

Coating thickness accuracy: ±3um

Vacuum plate: Aluminum plate with vacuum (convenient for substrate adsorption)

Built-in vacuum pump

Vacuum plate size: L410mm × W200mm × H30mm

Scraper adjustable range: 0～3.5mm

Power supply: 220V/50Hz

Weight: 48KG

Dimensions: L549mm × W305mm × H335mm

Vacuum aluminum tray, which can quickly place or remove the substrate;

It can be adjusted in the range of 0～300mm.

With micron-level adjustable film applicator (scale 10um), scraper with a width of 100mm.

Small size, can save space.

Exquisite appearance, the sheet metal adopts three-dimensional geometric design, which is simple and beautiful.
