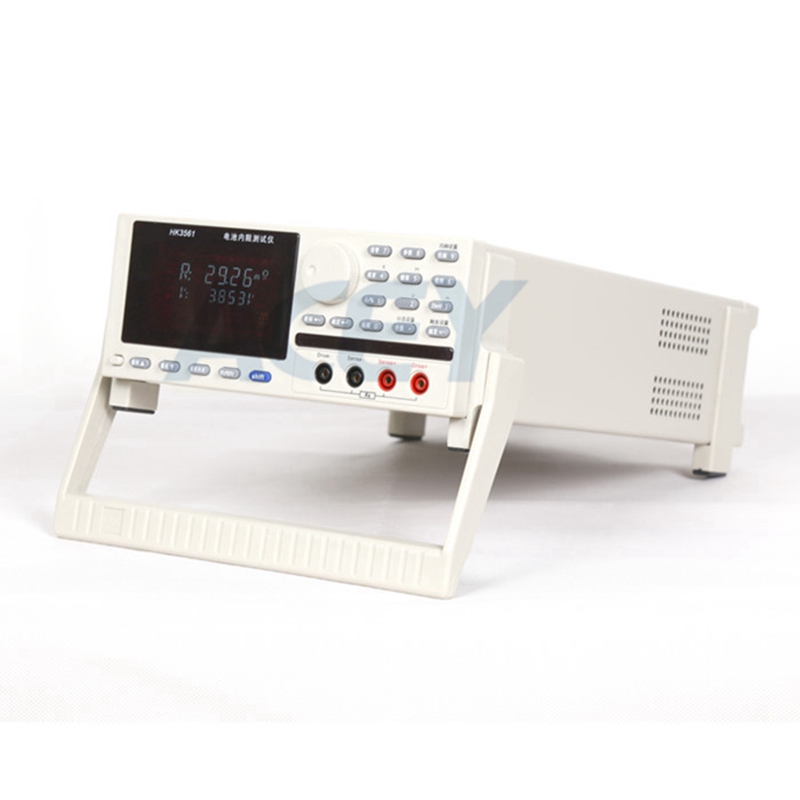

ACEY ACEY-HK3561 Battery Voltage and Internal Resistance Tester (Ω: 10U / 3.2K/V: 1mV~60V)

Measurement Parameters: ESR, DCV

Basic Accuracy: Internal resistance Ω: 0.5%; Voltage V: 0.1%

Test Range: Internal resistance Ω: 10U / 3.2KΩ; Voltage: 1mV~60V

Screen: Four-color VFD display

Maximum Display Value: Internal resistance Ω: 32000; Voltage V: 60000

Calibration: Full range short circuit zero calibration; REL function

Comparator: 30 sets of data recording, ng-lo, gd-in, ng-hi display and output, adjustable buzzer volume

Trigger Mode: Internal/manual

Interface: RS-232C / RS-485

Power Supply: Voltage 198VAC ~ 240VAC; Frequency 47Hz ~ 63Hz; Power Max 15VA

Dimensions & Weight: Size 385mm(L) × 249mm(W) × 102mm(D); Weight 3.5kg

Accessories: HK3500-A Kelvin test line, HK3800 RS232C interface cable

Options: HK3500-B test probe

Others: Internal resistance Ω: 10U / 3.2KΩ; Voltage 1mV~60V

Features

Using the vector measurement method, multiple parameters can be measured at the same time

High-speed, high-precision measurement, the basic accuracy of internal resistance test is 0.5%, the basic accuracy of voltage test is 0.1%, and the fastest test speed can reach 25 times per second

Comparator (sorting) function, built-in 30 sets of comparator data

Test line damage detection indication

Adjustable sound size and brightness

Compatible with SCPI commands and Modbus commands

Low power test, maximum test current <100mA
