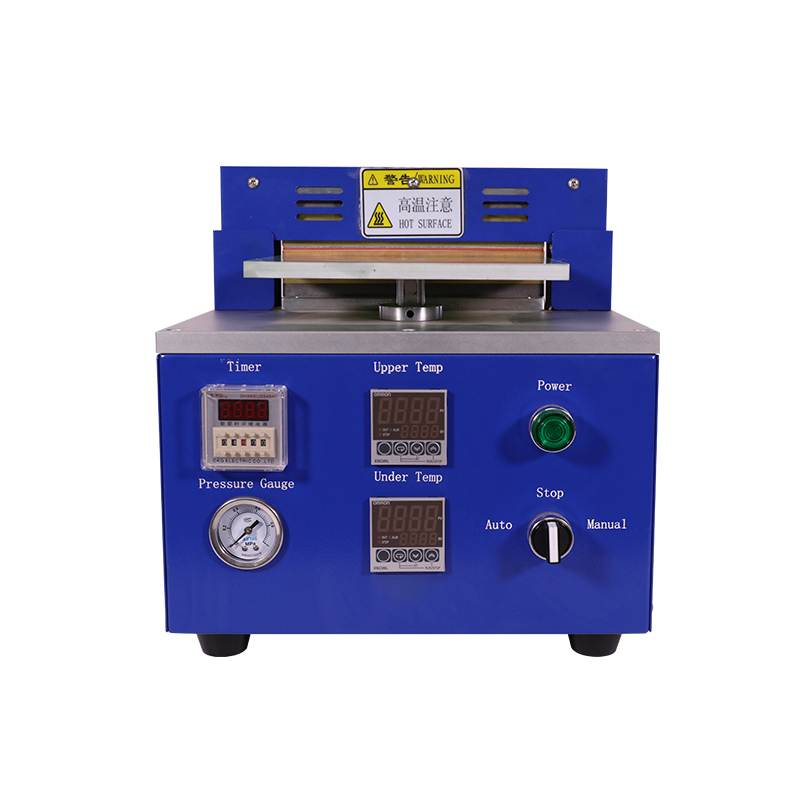

ACEY ACEY-HS200-2 Pouch Cell Top and Side Battery Heat Sealing Machine

Maximum sealing length: 200 mm

Air bag side width: 15–90 mm

Seal width: standard 5 ± 0.4 mm (optional 3–10 mm), sealing knife replaceable for other widths

Side sealing thickness: 60–300 μm (depending on aluminum-plastic film thickness)

Top tab sealing thickness: 200–700 μm (depending on aluminum-plastic film thickness)

Heat sealing temperature: room temperature ~ 250°C, freely adjustable

Temperature control accuracy: ±2°C

Distance from main body to sealing edge: 1–5 ± 0.4 mm adjustable

Sealing time: 2–3 s standard (0–99 s adjustable)

Sealing thickness accuracy: difference between any two points < 15 μm

Operation: automatic and manual

Compressed air: 5–8 kg/cm²

Pneumatic working speed: ≥400 cycles/hour

Power supply: AC 220V / 50Hz

Power: 0.5 kW

1. Unique safety protection and anti-scalding design, the temperature of the upper and lower irons can be adjusted through the button on the thermostat panel.

2. The head is made of copper material, which has good heat transfer effect, saves electricity consumption, improves work efficiency, and saves energy compared with similar products.

3. The pressure of the upper and lower heads can be adjusted by the pressure regulating valve to meet the requirements of different process parameters.

4. The upper and lower heads are driven by cylinders and guided by two linear guide sleeves, which can move up and down flexibly and accurately to ensure the parallelism requirements of the product after edge sealing.

5. It can be applied to the product batteries of different specifications, and the adjustment is simple and convenient, without adjustment and replacement of the seal head.

6. The frame is made of aluminum profile, which has a beautiful appearance; the sheet metal adopts three-dimensional geometric design, which is simple and beautiful.

7. Small size, smooth and even seal marks, beautiful appearance of the edge seal; soft package heat sealing machine equipment.
