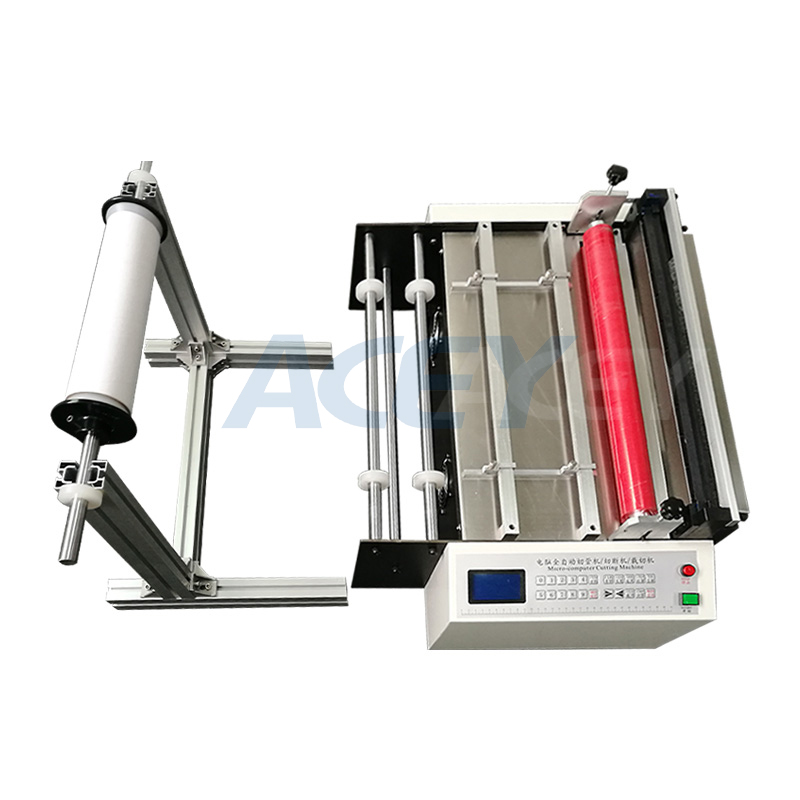

ACEY ACEY-PFC400 Automatic PVC Shrink Film Cutting Machine (34m/min)

Power Supply: 220V, 50/60Hz

Cutting Speed: 34 m/min

Cutting Width: 0.1 – 410 mm (Effective: 400 mm)

Cutting Length: 0.1 – 9999.9 mm

Machine Weight: 55 kg

Dimensions: 590 × 680 × 390 mm

Blade Material: SKD-11

Bearing: Imported SOO6Z

Panel Material: Stainless Steel

Roller Material: Polyurethane (Hardness: 60)

Display: LCD Screen (128 × 64)

Cutting Motor: 120W

Feeding Motor: Stepper Motor (86 × 96)

Features

Microcomputer numerical control system with digital display

Freely adjustable cutting length, quantity, and feeding speed

Adjustable roller feeding mechanism with automatic pressure regulation and lifting on both sides

Pin-type feeding system effectively prevents material scratching

High precision cutting with minimal material loss

Ergonomic design for easy operation and reduced operator fatigue

Stable performance with high automation level

Quick material loading and efficient production workflow

Applications

PVC / PET film cutting

Heat shrink sleeve processing

Roll and strip material cutting

Wire, cable, and insulation sleeve cutting

Lithium battery pack outer wrapping materials
