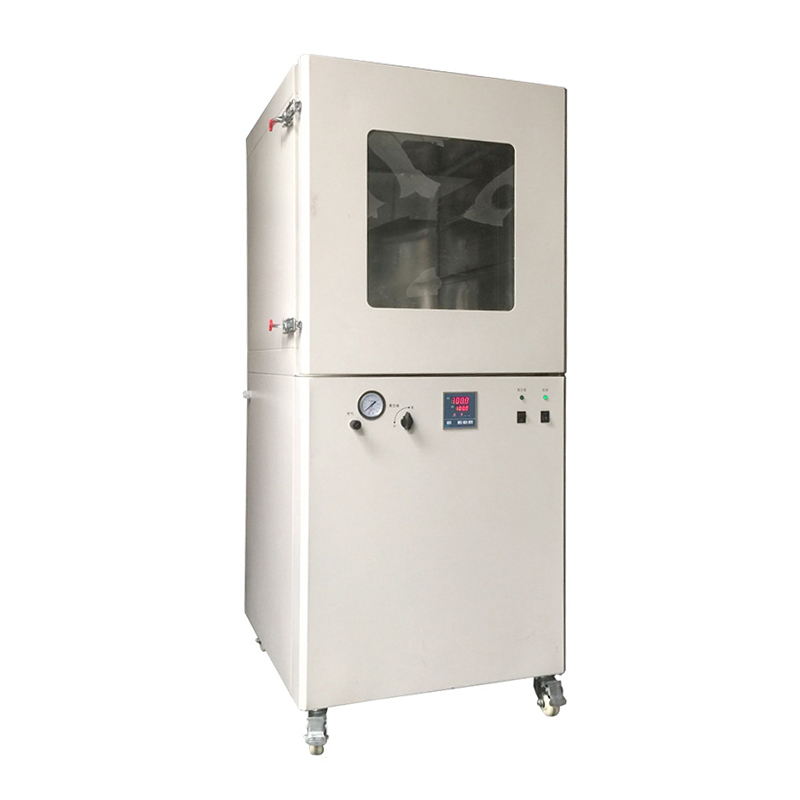

ACEY ACEY-PVD-090 Lab Vacuum Drying Oven (90L; R.T.+10～250℃)

Volume: 90L

Range: R.T.+10～250℃

Control accuracy: 0.1℃

Fluctuation（TEMP）: ±0.5℃

Shelves: 2PCS

VACUUM: <133Pa

Vacuum pump: WITH

Power supply: AC220V/50HZ

Power consumption: 2.4KW

Interior Size mm: 450X450X450

Overall Size mm: 595X600X1245

Options (optional):

SS-Stainless steel housing (SUS202, 304, 316L available)

SC-independent temperature limiting thermostat

PC-Digital display pressure controller

HT-Temperature range 300℃

AI-Manual third party gas inlet valve

FS-Drying and filtering system

LP-LCD LCD intelligent multi-stage program controller

PR-Paperless recorder

TP-printer(heat sensitive,panel type,temperature record)

AC-Temperature, vacuum, inflation, vacuum automatic linkage PLC control system

TD-Built-in vacuum pump with lower box cabinet

VP-optional vacuum pump

CS-Chemical (inner liner material is 316 stainless steel)

LZ-Condensing system (with refrigeration compressor, cold well)

BS-Biological (temperature control range 50-65)

HC-load-bearing partition (load-bearing capacity 50KG,standard load-bearing capacity 15KG)

Application

Vacuum Drying Oven is widely used in research applications such as biochemistry, chemical pharmacy, medical and health, agricultural scientific research, environmental protection, etc., and are suitable for powder drying, baking, and disinfection and sterilization of various glass containers. It is suitable for fast and efficient drying treatment of dry heat sensitive, easily decomposed, easily oxidized substances and complex components.

Features

Adopts originated domestic streamline arc design, the outer is made of cold rolled steel plate, the surface is static lacquered;

Temperature control system adopts microcomputer single chip technology, with the functions of temperature control, timing and over-temperature alarm;

Double screens of high light nixie tube display, the value displayed well, predominant performance, set and adjust parameters by touch type buttons;

With the functions of timing and time;

The interior chamber is made of stainless steel material, the design of corners semicircular is easy to clean;

The tightness of door can be adjusted by user optionally, the silicone rubber door seal whole shaped, ensure the high vacuum degreed in chamber;

The chamber is quadrate to maximize the volume, the door adopts steel bulletproof double glass which is easy for observation.

Advantages

It has follow advantages compare with the routine dry technology:

Vacuum environment greatly reduced the liquid boiling point which needs to drive out, therefore the vacuum dry method is applicable for heat sensitivity material;

For the sample that can't be dried easily, such as powder or other pellet form sample, using vacuum dry method may efficiently shorten dry time;

Various complex structures of machinery ministry or other porous sample process are used of vacuum dry method after washing, and Completely dry without leaving any residue;

Use more safe: under vacuum or inertia condition, completely eliminate the possibility that the oxide heated and explode;

Compare with the normal drying depended on air cycle, Powder samples will not be blown or moved by air
