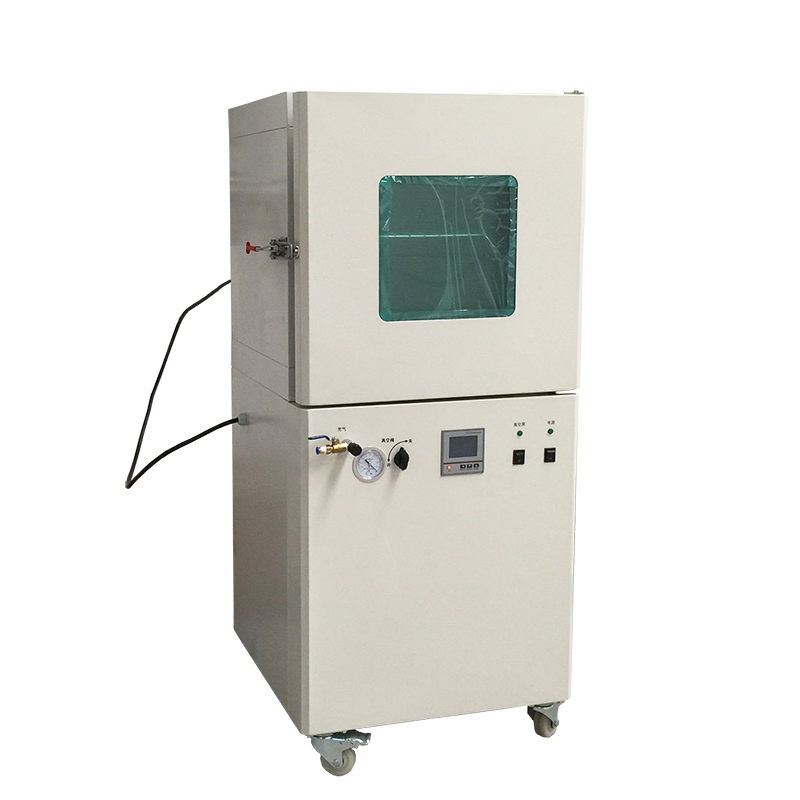

ACEY ACEY-PVD-090D Vacuum Drying Oven (90L; RT+10~500℃)

Volume: 90L

Temperature control range: RT+10~500℃

Temperature resolution: 0.1 ℃

Temperature control accuracy: ± 0.5 ℃

Number of partitions: 2PCS

Low vacuum: 100Pa

Vacuum pump: Built-in standard

Power Supply: AC380V/50Hz

Rated power: 4.5KW

Size of liner: 450X450X450

Overall dimensions: 695X700X1350

There may be errors in the overall dimensions, which are subject to the actual objects.

1. Advanced Structural Design

Streamlined Build: The exterior features a high-quality cold-rolled steel plate with an electrostatic spray finish for superior corrosion resistance.

Superior Interior: The inner chamber is crafted from high-grade stainless steel with a dead-angle-free design, ensuring effortless cleaning and sterilization.

2. Specialized Radiation Heating

Uniform Heat Distribution: Utilizing a unique radiation heating method, the oven ensures internal temperatures are highly stable and evenly distributed. This allows every sample to receive consistent thermal exposure for reliable results.

3. Intelligent PID Control System

Precision Management: Equipped with a microcomputer PID controller, the system offers automated temperature regulation, timing functions, and over-temperature alarms.

User-Friendly Interface: Features a high-definition LCD display and intuitive tactile buttons for stable, hassle-free operation.

4. Optimized Observation & Ergonomics

Large Viewport: A heavy-duty tempered glass observation window allows for real-time monitoring of samples.

Thermal Safety: Advanced insulation technology keeps the exterior window temperature within a safe touch range.

Flexible Loading: Adjustable shelf brackets allow users to customize the height and number of shelves based on sample size.

5. Energy Efficiency

Thermal Retention: Employs cutting-edge insulation materials to minimize heat loss, significantly reducing energy consumption and operational costs.

6. Safety & Protection (Optional)

Dual-Layer Security: An optional independent temperature limit controller can be installed to provide a secondary safety circuit, preventing thermal runaway.

7. Enhanced Moisture Management (Optional)

Condensation Unit: For materials with high moisture content, a front-end condensation system can be integrated. This captures water vapor before it enters the vacuum pump, preventing pump halogenation and extending the lifespan of your vacuum equipment.
