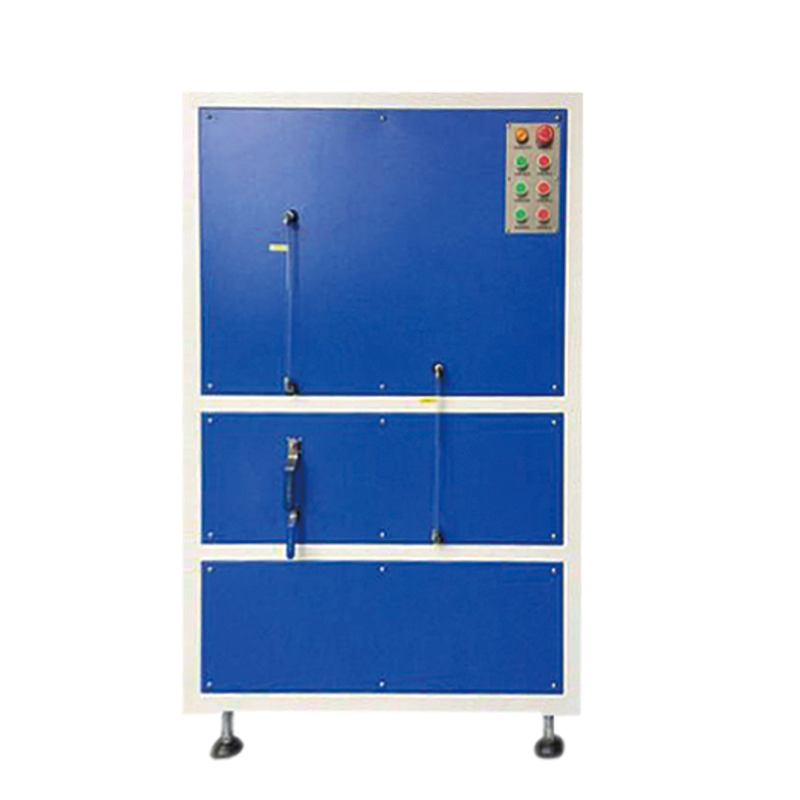

ACEY ACEY-ST300 Water-soluble Waste Gas Solvent Treatment System For Battery Coating Machine (600m³/h)

Working mode: Continuous operation

Processing capacity: 600m³/h

Inlet temperature: ≤150℃

Recovery rate: ≥80%

Recycling object: Water-soluble solvent gas

Processing object: Gas

Processing range: Water-based solvent

Contact material: SUS304 stainless steel

Gas emission: External pipeline

Air intake volume: 600m³/h

Operating temperature: 0–40℃

Vibration and shock: No obvious vibration source around the equipment

Explosion-proof: Explosion-proof treatment applied to the equipment itself

Power supply: Three-phase 380V, 50Hz

Power: 1.5KW

Water bath principle, recycling NMP waste gas during coating process.

Two-stage water bath treatment unit, good for NMP and dust recovery.

Active self-priming air intake, can be directly added to tap water for use.

The stainless steel fully welded inner tank has good corrosion resistance, and the powder-sprayed shell is beautiful and generous.

The recovered solution is pumped out electrically, and the explosion-proof operation box design is safe and easy to use.
