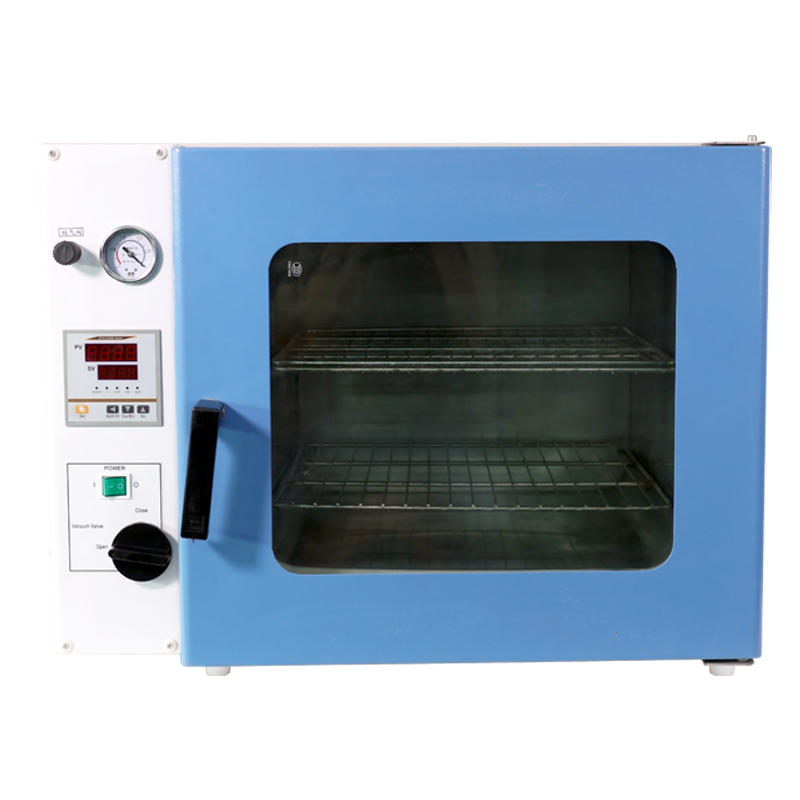

ACEY ACEY-VDO-2 Lab Vacuum Drying Ovens For Battery Raw Material Drying (50L)

Supports precise PID control with automatic adjustment

Passed radiation protection and anti-theft system

Temperature measurement accuracy: 0.1°C

Uniformity: 5°C (temperature difference between center and edge of chamber)

Multi-level temperature control, temperature gradient control

Tilt heating, pressure holding, air cooling — all can be set

Equipped with two movable stacking racks

Voltage: Single-phase standard AC 220V 50/60Hz

Power: <1500W, max 10A

Inner chamber size: 415 mm × 345 mm × 375 mm

Vacuum: <133 Pa

Dimensions: 710 mm × 565 mm × 555 mm

Weight: 30 kg

1. Observe the items in the working room at a glance.

2. Using integrally formed high temperature resistant silicone rubber sealing ring to ensure high vacuum in the box.

3. The inner tank is made of stainless steel, and the surface of the box body is sprayed with high temperature electrostatic to ensure the product is durable.
